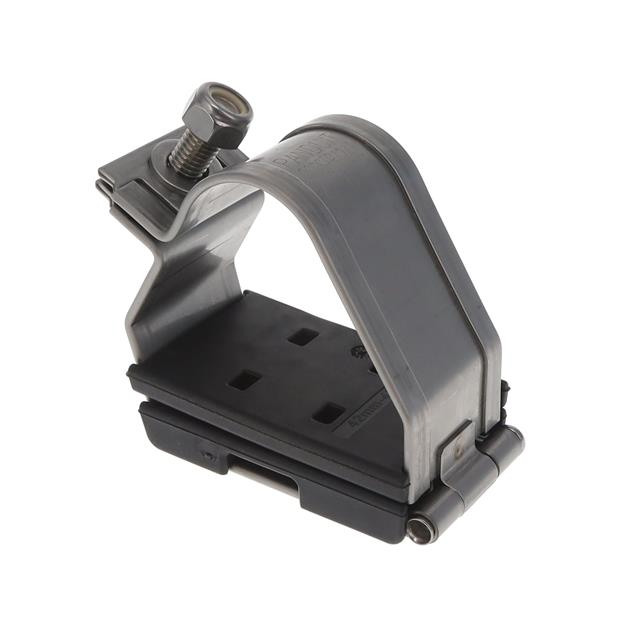

CCSSTR4248-X
ActivePanduit Corp
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, STAINLESS STEEL, TREFOIL CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCSSTR4248-X
ActivePanduit Corp
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, STAINLESS STEEL, TREFOIL CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CCSSTR4248-X | CCSSTR Series |
|---|---|---|
| Color | Natural | Natural |
| Height | - | 137.92 mm |
| Height | - | 117.09 mm |
| Height | - | 4.61 in |
| Height [z] | 112.01 mm | 5.43 - 145.03 mm |
| Height [z] | 4.41 in | 3.43 - 5.71 in |
| Length | - | 86.11 - 150.11 mm |
| Length | - | 3.39 - 5.91 in |
| Length [x] | 125.98 mm | 89.92 - 165.1 mm |
| Length [x] | 4.96 in | 0.295 - 6.5 " |
| Material | Stainless Steel | Stainless Steel |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width [y] | 62.99 mm | 62.99 mm |
| Width [y] | 2.48 in | 2.48 in |
CCSSTR Series
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, STAINLESS STEEL, TREFOIL CO
| Part | Type Attributes | Length | Length | Height [z] | Height [z] | Color | Material | Width [y] | Width [y] | Type | Length [x] | Length [x] | Height [z] | Height [diameter] | Height [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCSSTR3440-X | Adjustable | 111 mm | 4.37 in | 4.25 in | 107.95 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | |||||
Panduit Corp CCSSTR5865-X | Adjustable | 5.43 in | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | 6.18 " | 156.97 mm | 137.92 mm | |||||
Panduit Corp CCSSTR3844-X | Adjustable | 119.13 mm | 4.69 " | 4.25 in | 107.95 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | |||||
Panduit Corp CCSSTR4652-X | Adjustable | 133.1 mm | 5.24 " | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | 117.09 mm | 4.61 in | |||||
Panduit Corp CCSSTR3036-X | Adjustable | 104.9 mm | 3.94 in | 100.08 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | 4.13 " | |||||
Panduit Corp CCSSTR6269-X | Adjustable | 5.71 in | 145.03 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | 6.5 in | 165.1 mm | |||||
Panduit Corp CCSSTR2025-X | Adjustable | 86.11 mm | 3.39 in | 3.43 in | 87.12 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | |||||
Panduit Corp CCSSTR2328-X | Adjustable | 3.58 " | 90.93 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | 0.295 ' | 89.92 mm | |||||
Panduit Corp CCSSTR5461-X | Adjustable | 150.11 mm | 5.91 in | 5.12 in | 130.05 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | |||||
Panduit Corp CCSSTR5057-X | Adjustable | 4.84 in | 122.94 mm | Natural | Stainless Steel | 62.99 mm | 2.48 in | Clamp, Cleat | 5.63 in | 143 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCSSTR Series
Cable Clamp, Cleat Natural
