CCSSTR6269-X

Active

Panduit Corp

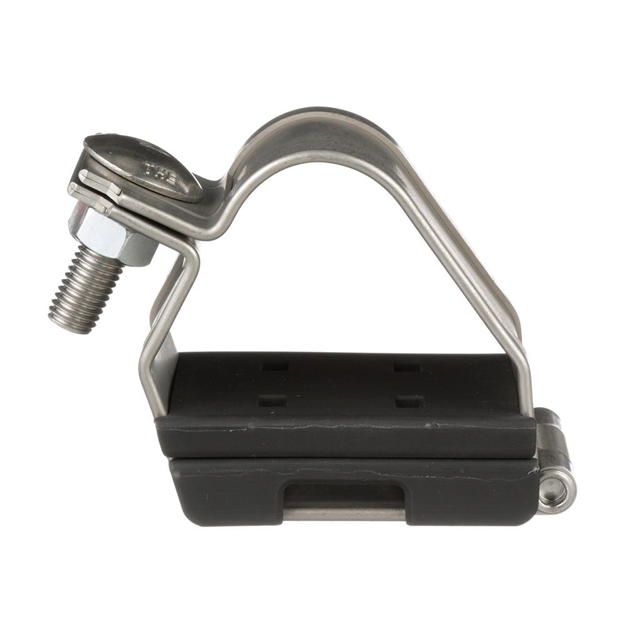

CABLE MOUNTING & ACCESSORIES CABLE CLEAT, STAINLESS STEEL, TREFOIL CO

Search across all available documentation for this part.

Active

Panduit Corp

CABLE MOUNTING & ACCESSORIES CABLE CLEAT, STAINLESS STEEL, TREFOIL CO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, Cleat Natural

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CABLE MOUNTING & ACCESSORIES CABLE CLEAT, STAINLESS STEEL, TREFOIL CO

Part	Type Attributes	Length	Length	Height [z]	Height [z]	Color	Material	Width [y]	Width [y]	Type	Length [x]	Length [x]	Height [z]	Height [diameter]	Height [diameter]
Panduit Corp CCSSTR3440-X	Adjustable	111 mm	4.37 in	4.25 in	107.95 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat
Panduit Corp CCSSTR5865-X	Adjustable				5.43 in	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat	6.18 "	156.97 mm	137.92 mm
Panduit Corp CCSSTR3844-X	Adjustable	119.13 mm	4.69 "	4.25 in	107.95 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat
Panduit Corp CCSSTR4652-X	Adjustable	133.1 mm	5.24 "			Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat				117.09 mm	4.61 in
Panduit Corp CCSSTR3036-X	Adjustable	104.9 mm		3.94 in	100.08 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat	4.13 "
Panduit Corp CCSSTR6269-X	Adjustable			5.71 in	145.03 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat	6.5 in	165.1 mm
Panduit Corp CCSSTR2025-X	Adjustable	86.11 mm	3.39 in	3.43 in	87.12 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat
Panduit Corp CCSSTR2328-X	Adjustable			3.58 "	90.93 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat	0.295 '	89.92 mm
Panduit Corp CCSSTR5461-X	Adjustable	150.11 mm	5.91 in	5.12 in	130.05 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat
Panduit Corp CCSSTR5057-X	Adjustable			4.84 in	122.94 mm	Natural	Stainless Steel	62.99 mm	2.48 in	Clamp, Cleat	5.63 in	143 mm
