Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.42 | |
| 10 | $ 11.97 | |||
| 25 | $ 11.19 | |||
| 50 | $ 10.63 | |||
General part information

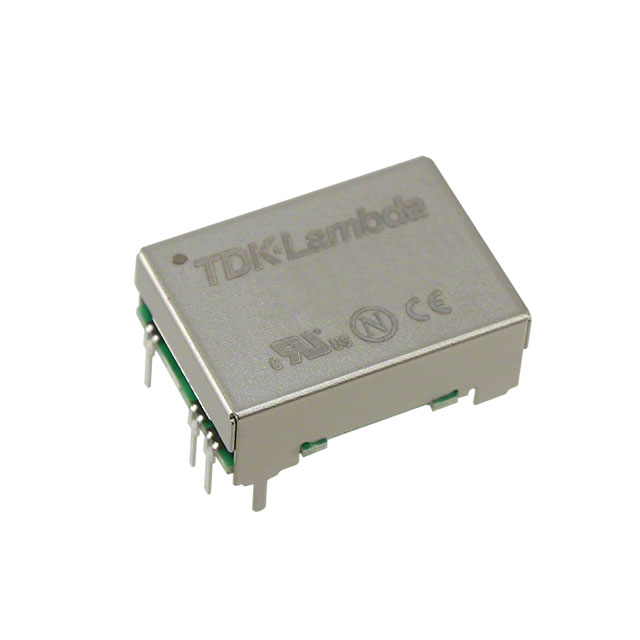

Isolated Module DC DC Converter 1 Output 3.3V 800mA 36V - 76V Input
Technical documentation and resources
Parameters and characteristics for this part
| Specification | CC3-4803SF-E |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 800 mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 22.9 mm |
| Size / Dimension [x] | 0.9 " |
| Size / Dimension [y] | 16.6 mm |
| Size / Dimension [y] | 0.65 in |
| Size / Dimension [z] | 0.34 in |
| Size / Dimension [z] | 8.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 3.3 V |
DC DC CONVERTER 3.3V 3W
| Part | Voltage - Isolation | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Type | Mounting Type | Power (Watts) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA CC3-4803SF-E | 500 V | ITE (Commercial) | 76 V | 1 | 0.34 in | 16.6 mm | 22.9 mm | 0.9 " | 0.65 in | 8.5 mm | 800 mA | 36 V | Isolated Module | Through Hole | 3 W | 7-DIP Module | 85 °C | -40 °C | 3.3 V | Active Low, Enable |
