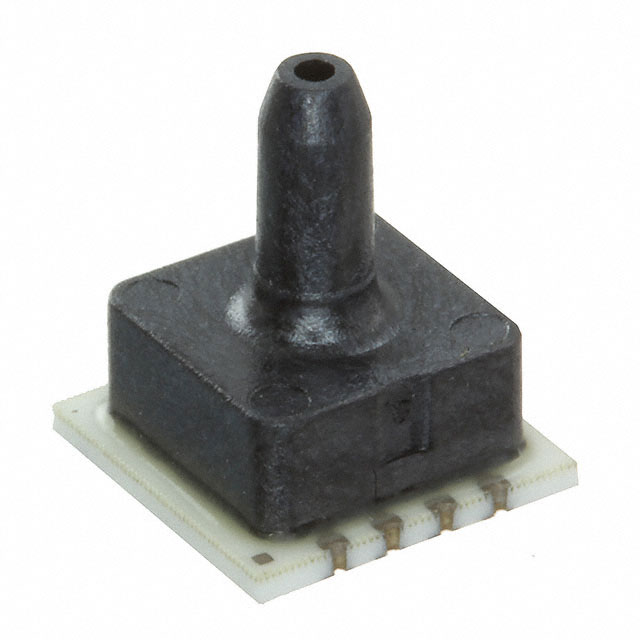

1471-015A-T

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15PSIA 0.09" .065V

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15PSIA 0.09" .065V

Technical Specifications

Parameters and characteristics for this part

SENSOR 15PSIA 0.09" .065V

Part	Mounting Type	Operating Pressure [custom]	Operating Pressure [custom]	Output Type	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Min]	Output	Output [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Port Size	Port Size	Port Size	Accuracy	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]
TE Connectivity Measurement Specialties 1471-015A-T	Surface Mount	15 PSI	103.42 kPa	Wheatstone Bridge	SMD (SMT) Tab	310.26 kPa	45 PSI	0 mV	5V	65 mV	Board Mount	125 °C	-40 °C	Barbless	2.29 mm	Male, Tube	0.09 "	0.25 %	8-SMD, No Lead, Top Port	5 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 30.01

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.29mm) Tube 0 mV ~ 65 mV (5V) 8-SMD, No Lead, Top Port

Technical documentation and resources

No documents available
