PHG.0B.305.CLLD35
ActiveLEMO

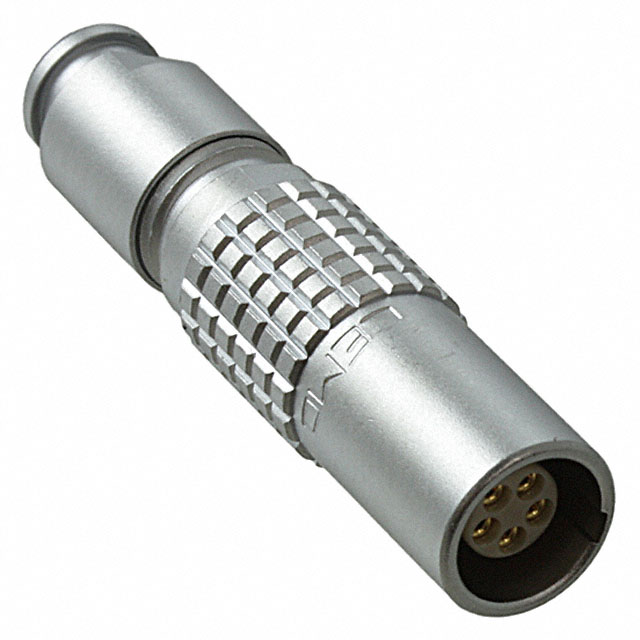

CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHG.0B.305.CLLD35
ActiveLEMO
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PHG.0B.305.CLLD35 | PHG.0B Series |
|---|---|---|
| Attenuation - Typ | - | -1.13 dB |
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome, Black Chrome |
| Boot Color | - | Gray |
| Cable Diameter | - | 3.4 mm |
| Cable Opening | - | 0.055 - 0.126 in |
| Cable Opening | - | 1.4 - 3.2 mm |
| Cable Opening | - | 0.126 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 0.165 in |
| Cable Opening | - | 3.2 mm |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 0.22 in |
| Cable Opening | - | 5.3 mm |
| Cable Opening | - | 5.6 mm |
| Cable Opening | - | 0.209 in |
| Cable Opening [diameter] | 3.3 mm, 4.2 mm | 3.3 - 5.2 mm |
| Cable Opening [diameter] | 0.165 in, 0.13 in | 0.13 - 4.2 mm |
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Insert Shell, Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze, Brass |
| Current Rating (Amps) | 6.5 A | 2 - 10 A |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Features | Backshell | Backshell, Strain Relief |
| Ferrule Material | - | Metal |
| Fiber Cladding Diameter | - | 1035 µm |
| Fiber Core Diameter | - | 1000 µm |
| Housing Color | - | Black, Silver |
| Housing Material | - | Brass |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mode | - | Multimode |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included; Insert Not Included |
| Number of Positions | - | 2 - 11 |
| Operating Temperature [Max] | 250 °C | 80 - 250 °C |
| Operating Temperature [Min] | -55 °C | -55 - -40 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 305 | 302 - 309 |
| Shielding | Shielded | Shielded |
| Simplex/Duplex | - | Simplex |
| Termination | - | Crimp |
PHG.0B Series
CONN RCPT FMALE 4P GOLD SLDR CUP
...
| Part | Fastening Type | Features | Connector Type | Insert Material | Orientation | Material Flammability Rating | Number of Positions | Color | Backshell Material, Plating | Mounting Type | Current Rating (Amps) | Ingress Protection | Contact Material | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Contact Finish - Mating | Shell Finish | Shielding | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Note | Housing Color | Ferrule Material | Fiber Cladding Diameter [diameter] | Fiber Core Diameter [diameter] | Simplex/Duplex | Boot Color | Mode | Housing Material | Mating Cycles | Cable Diameter [diameter] | Attenuation - Typ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PHG.0B.304.CLLZ | Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 4 | Silver | Brass, Chrome | Free Hanging (In-Line) | 7 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 304 | 59 Áin | 1.5 Ám | ||||||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 4 | Silver | Brass, Chrome | Free Hanging (In-Line) | 7 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 304 | 59 Áin | 1.5 Ám | Crimp | 0.091 in, 0.126 in | 2.3 mm, 3.2 mm | ||||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 2 | Silver | Brass, Chrome | Free Hanging (In-Line) | 10 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 302 | 59 Áin | 1.5 Ám | 0.091 in, 0.126 in | 2.3 mm, 3.2 mm | |||||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 9 | Silver | Brass, Chrome | Free Hanging (In-Line) | 2 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 309 | 59 Áin | 1.5 Ám | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | |||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 7 | Silver | Brass, Chrome | Free Hanging (In-Line) | 2.5 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 307 | 59 Áin | 1.5 Ám | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | |||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 4 | Silver | Brass, Chrome | Free Hanging (In-Line) | 7 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 304 | 59 Áin | 1.5 Ám | Crimp | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | |||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | Silver | Brass, Chrome | Free Hanging (In-Line) | 6.5 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 305 | 59 Áin | 1.5 Ám | Crimp | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | |||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | Silver | Brass, Chrome | Free Hanging (In-Line) | 6.5 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 305 | 59 Áin | 1.5 Ám | 0.13 in, 0.165 in | 3.3 mm, 4.2 mm | ||||||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | Silver | Brass, Chrome | Free Hanging (In-Line) | 8 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 303 | 59 Áin | 1.5 Ám | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | ||||||||||||||||||||||||
Push-Pull | Backshell | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | G | UL94 V-0 | 4 | Silver | Brass, Chrome | Free Hanging (In-Line) | 7 A | IP50 | Bronze | Brass | -55 °C | 250 °C | Metal | Gold | Chrome | Shielded | 304 | 59 Áin | 1.5 Ám | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.01 | |
Description
General part information
PHG.0B Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
