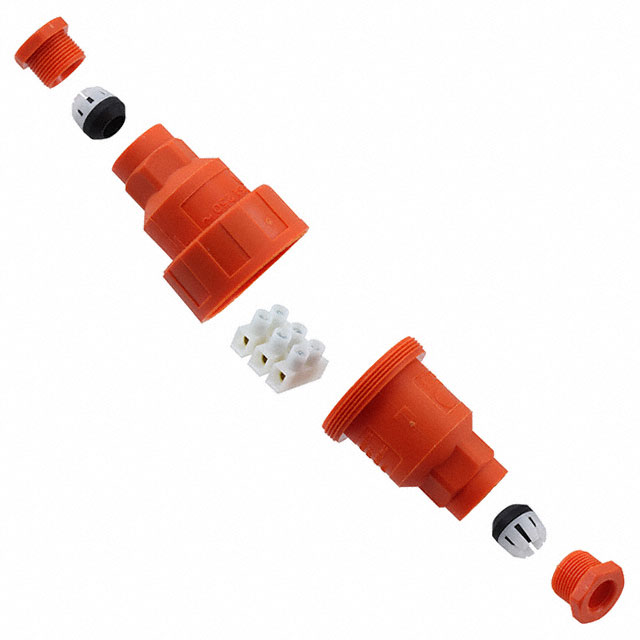

PX0777/OR
ActiveBULGIN LIMITED
CONN TERM STRIP 3CIRCUIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0777/OR
ActiveBULGIN LIMITED
CONN TERM STRIP 3CIRCUIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0777/OR |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Current Rating (Amps) | 16 A |
| Features | Circular Threaded Coupling, Industrial Environments (IP68) |
| Material - Insulation | Polyamide (PA), Glass Filled, Nylon |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Terminal Block Type | Eurostyle Terminal Strip |
| Voltage Rating | 250 VDC |
| Wire Gauge | RG58/C, URM43, URM76 |
PX0777 Series
| Part | Contact Finish | Shielding | Shell Material, Finish | Contact Material | Ingress Protection | Convert To (Adapter End) | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Convert From (Adapter End) | Housing Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Type | Ratings | Number of Circuits | Voltage Rating | Terminal Block Type | Number of Rows | Barrier Type | Number of Wire Entries | Material Flammability Rating | Material - Insulation | Wire Gauge | Bottom Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Gold | Shielded | Polyamide Glass Filled | Phosphor Bronze | IP68 - Dust Tight Waterproof | 8p8c (RJ45) Jack | Free Hanging (In-Line) | 50 µin | 1.27 µm | Jack 8p8c (RJ45) | Acrylonitrile Butadiene Styrene (ABS) | Circular Threaded Coupling | -40 °C | 70 °C | Coupler | Cat5e | |||||||||||
BULGIN LIMITED | Gold | Unshielded | Polyamide Glass Filled | Phosphor Bronze | IP68 - Dust Tight Waterproof | 8p8c (RJ45) Jack | Free Hanging (In-Line) | 50 µin | 1.27 µm | Jack 8p8c (RJ45) | Acrylonitrile Butadiene Styrene (ABS) | Circular Threaded Coupling | -40 °C | 70 °C | Coupler | ||||||||||||
BULGIN LIMITED | Free Hanging (In-Line) | Circular Threaded Coupling Industrial Environments (IP68) | -20 C | 70 °C | 3 | 250 VDC | Eurostyle Terminal Strip | 2 | Enclosed | 6 | UL94 HB | Glass Filled Nylon Polyamide (PA) | RG58/C URM43 URM76 | Closed | 16 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 15.48 | |
Description
General part information
PX0777 Series
3 Circuit Eurostyle Terminal Strip Connector
Documents
Technical documentation and resources
