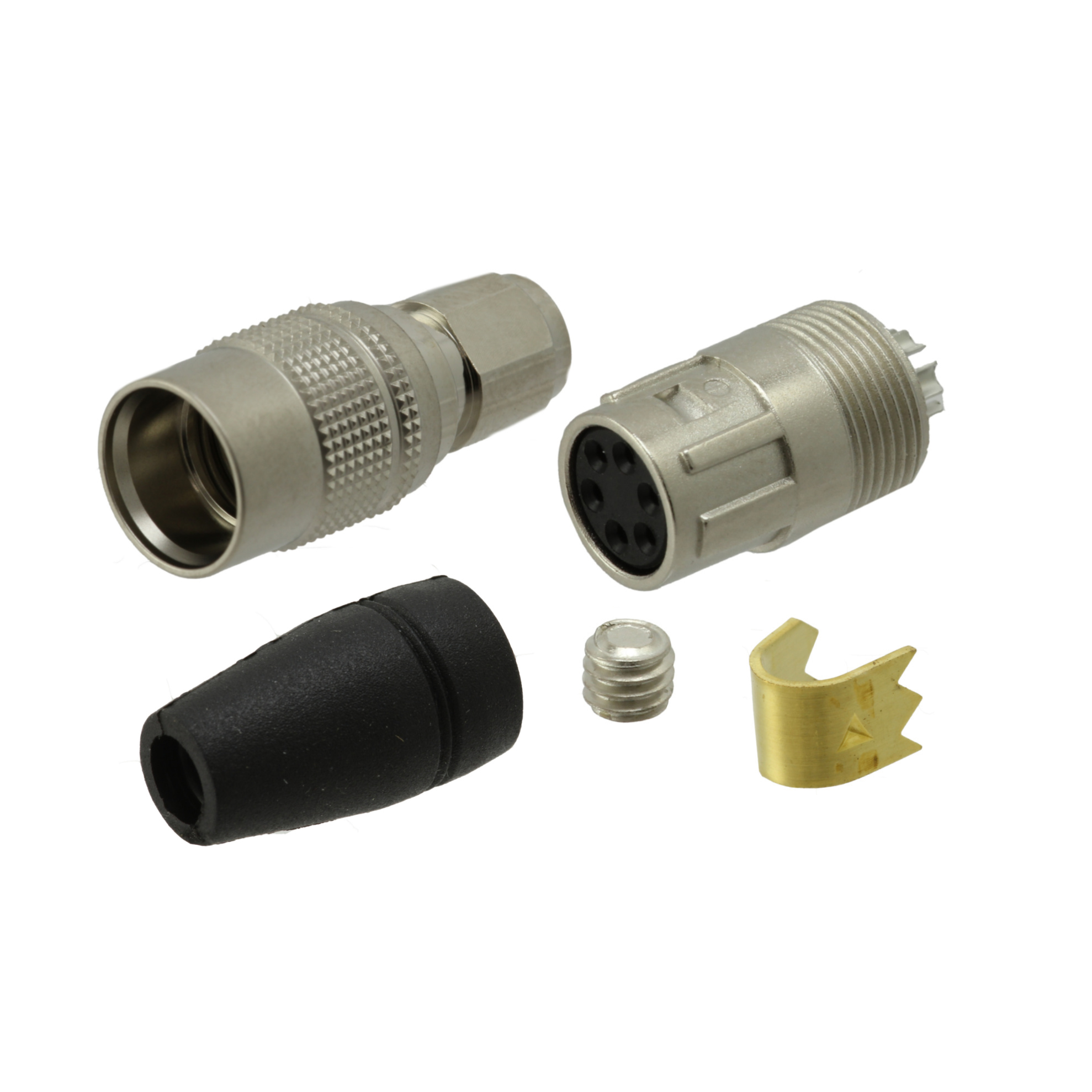

SD-PNN06-FFLAL-SX0-000

Active

Adam Tech

CONN RCPT FMALE 6POS SOLDER CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT FMALE 6POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SD-PNN06-FFLAL-SX0-000

Backshell Material, Plating	Nickel, Brass
Cable Opening [custom]	0.291 in
Cable Opening [custom]	7.39 mm
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Fastening Type	Detent Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	DIN
Shielding	Unshielded

Part	Shell Material	Number of Positions	Primary Material	Color	Contact Finish - Mating	Orientation	Contact Finish Thickness - Mating	Cable Opening [custom]	Cable Opening [custom]	Features	Contact Material	Material Flammability Rating	Ingress Protection	Shielding	Backshell Material, Plating	Shell Size - Insert	Insert Material	Fastening Type	Shell Finish	Mounting Type	Connector Type
Adam Tech SD-PNN06-FFLAL-SX0-000	Zinc Alloy	6	Metal	Black Silver	Gold	Keyed	Flash	0.291 in	7.39 mm	Backshell Cable Clamp Strain Relief	Brass	UL94 V-0	IP67 - Dust Tight Waterproof	Unshielded	Brass Nickel	DIN	Polyamide (PA46) Nylon 4/6	Detent Lock	Nickel	Free Hanging (In-Line)	Receptacle Female Sockets
