1375796-4

Active

TE Connectivity AMP Connectors

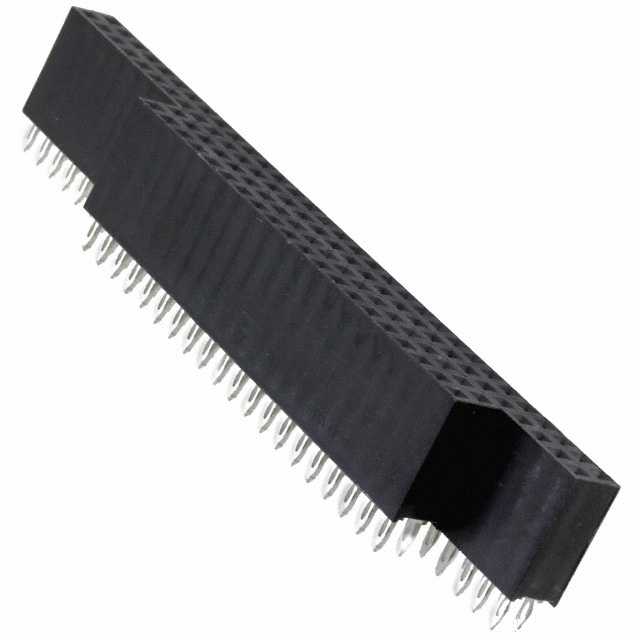

CONN NON-STKTHRU PC/104 104P PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN NON-STKTHRU PC/104 104P PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1375796-4

Color	Black
Connector Style	PC/104
Connector Type	Non-Stackthrough, Unkeyed (PC/104)
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	104
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Press-Fit

CONN NON-STKTHRU PC/104 104P PCB

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color	Pitch [x]	Pitch [x]	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Contact Finish	Connector Type	Number of Positions
TE Connectivity AMP Connectors 1375796-4	Press-Fit	105 ░C	-55 °C	Black	2.54 mm	0.1 in	PC/104	15 µin	0.38 µm	Through Hole	All	UL94 V-0	Gold	Non-Stackthrough, Unkeyed (PC/104)	104

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

104 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104
