SFV12R-1STE1HLF

Active

Amphenol ICC (FCI)

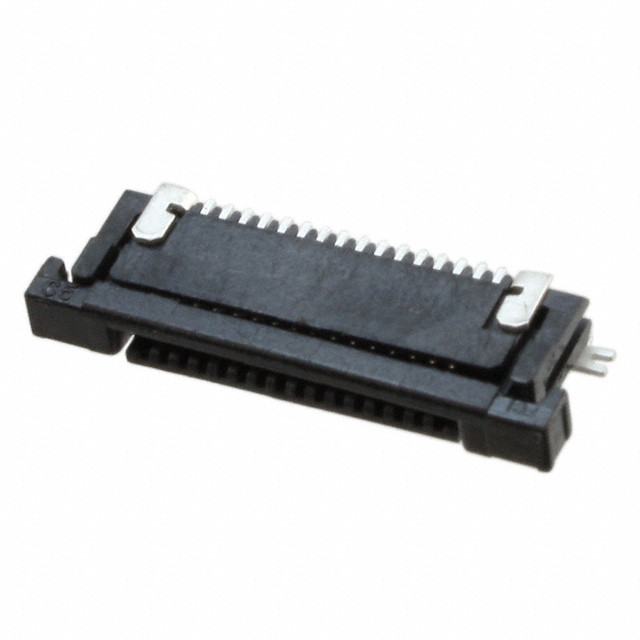

CONN FFC BOTTOM 12POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documentsfci basics ffc fpc productpresentation Other Related Document Datasheet +2

SFV12R-1STE1HLF

Active

Amphenol ICC (FCI)

CONN FFC BOTTOM 12POS 0.5MM R/A

Deep-Dive with AI

Documentsfci basics ffc fpc productpresentation Other Related Document Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV12R-1STE1HLF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled, Halogen Free
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV12R Series

Part	Locking Feature	FFC, FCB Thickness	Cable End Type	Housing Color	Actuator Color	Pitch [x]	Pitch [x]	Contact Material	Features	Housing Material	Connector/Contact Type	Material Flammability Rating	Actuator Material	Height Above Board	Height Above Board	Number of Positions	Termination	Contact Finish	Mounting Type	Flat Flex Type	FFC, FCB Thickness [z]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness
Amphenol ICC (FCI) SFV12R-3STAE1HLF	Slide Lock	0.33 mm	Tabbed	Black	Gray	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention	Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Top	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Gold	Surface Mount Right Angle	FPC
Amphenol ICC (FCI) SFV12R-1STE9HLF	Slide Lock		Straight Tapered	Black	Black	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Bottom	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Tin	Surface Mount Right Angle	FFC FPC	0.3 mm 0.33 mm	50 V	105 ░C	-55 °C	0.5 A	20
Amphenol ICC (FCI) SFV12R-1STBE9HLF	Slide Lock		Straight Tapered	Black	Black	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Bottom	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Gold	Surface Mount Right Angle	FFC FPC	0.3 mm 0.33 mm	50 V	105 ░C	-55 °C	0.5 A	20	Flash
Amphenol ICC (FCI) SFV12R-2STAE1HLF	Slide Lock		Straight Tapered	Black	Black	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Top	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Gold	Surface Mount Right Angle	FFC FPC	0.3 mm 0.33 mm	50 V	105 ░C	-55 °C	0.5 A	20
Amphenol ICC (FCI) SFV12R-2STE1LF	Slide Lock		Straight Tapered	Black	Brown	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA) Nylon Glass Filled	Contacts Top	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	1.8 mm	0.071 in	12	Solder	Tin	Surface Mount Right Angle	FFC FPC	0.3 mm 0.33 mm	50 V	105 ░C	-55 °C	0.5 A
Amphenol ICC (FCI) SFV12R-2STE5HLF	Slide Lock		Straight Tapered		Black	0.5 mm	0.02 in				Contacts Top	UL94 V-0		1.8 mm	0.071 in	12	Solder		Surface Mount Right Angle		0.3 mm 0.33 mm				0.5 A	20
Amphenol ICC (FCI) SFV12R-4STE1HLF	Slide Lock	0.3 mm	Tapered	Black	Beige	0.5 mm	0.02 in	Phosphor Bronze		Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Top	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Tin	Surface Mount Right Angle	FPC		50 V	105 ░C	-55 °C	0.5 A	20
Amphenol ICC (FCI) SFV12R-2STBE1HLF	Slide Lock		Tapered	Black	Brown	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Top	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Gold	Surface Mount Right Angle	FFC FPC	0.3 mm 0.33 mm	50 V	105 ░C	-55 °C	0.5 A	20
Amphenol ICC (FCI) SFV12R-2STE1HLF	Flip Lock	0.3 mm	Notched or Tabbed	Black	Black	0.5 mm	0.02 in	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Top	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Tin	Surface Mount Right Angle	FFC FPC		50 V	105 ░C	-55 °C	0.5 A	20
Amphenol ICC (FCI) SFV12R-1STE1HLF	Slide Lock		Straight Tapered	Black	Black	0.5 mm	0.02 in	Phosphor Bronze		Polyamide (PA) Nylon Glass Filled Halogen Free	Contacts Bottom	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	1.8 mm	0.071 in	12	Solder	Tin	Surface Mount Right Angle	FFC FPC	0.3 mm 0.33 mm	50 V	105 ░C	-55 °C	0.5 A	20
