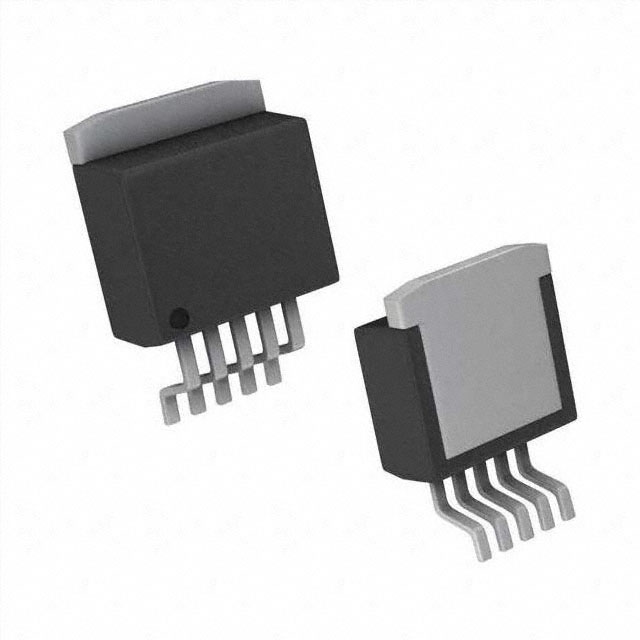

TLE4270GNTMA1

Obsolete

Infineon Technologies

IC REG LINEAR 5V 650MA TO263-5-1

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC REG LINEAR 5V 650MA TO263-5-1

Technical Specifications

Parameters and characteristics for this part

Specification	TLE4270GNTMA1

Control Features	Reset
Current - Output	650 mA
Current - Quiescent (Iq)	1.5 mA
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Temperature, Over Voltage, Short Circuit, Transient Voltage, Reverse Polarity, Over Current
PSRR	54 dB
Supplier Device Package	PG-TO263-5-1
Voltage - Input (Max) [Max]	42 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.7 V

Part	Output Type	Supplier Device Package	Protection Features	Voltage - Output (Min/Fixed)	Output Configuration	Mounting Type	PSRR	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Current - Output	Number of Regulators	Voltage Dropout (Max) [Max]	Control Features	Package / Case	Qualification	Grade
Infineon Technologies TLE4270SNKSA1	1.81 mOhm	PG-TO220-5-12	Over Current Over Temperature Over Voltage Reverse Polarity Short Circuit Transient Voltage	5 V	Positive	Through Hole	54 dB	1.5 mA	42 V	650 mA	1	0.7 V	Reset	TO-220-5
Infineon Technologies TLE42702SAKSA1	1.81 mOhm	PG-TO220-5	Over Current Over Temperature Over Voltage Reverse Polarity Short Circuit Transient Voltage	5 V	Positive	Through Hole	54 dB	1.5 mA	42 V	650 mA	1	0.7 V	Reset	TO-220-5 Formed Leads	AEC-Q100	Automotive
Infineon Technologies TLE42702AKSA1	1.81 mOhm	PG-TO220-5	Over Current Over Temperature Over Voltage Reverse Polarity Short Circuit Transient Voltage	5 V	Positive	Through Hole	54 dB	1.5 mA	42 V	650 mA	1	0.7 V	Reset	TO-220-5 Formed Leads	AEC-Q100	Automotive
Infineon Technologies TLE4270GNTMA1	1.81 mOhm	PG-TO263-5-1	Over Current Over Temperature Over Voltage Reverse Polarity Short Circuit Transient Voltage	5 V	Positive	Surface Mount	54 dB	1.5 mA	42 V	650 mA	1	0.7 V	Reset	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 650mA PG-TO263-5-1
