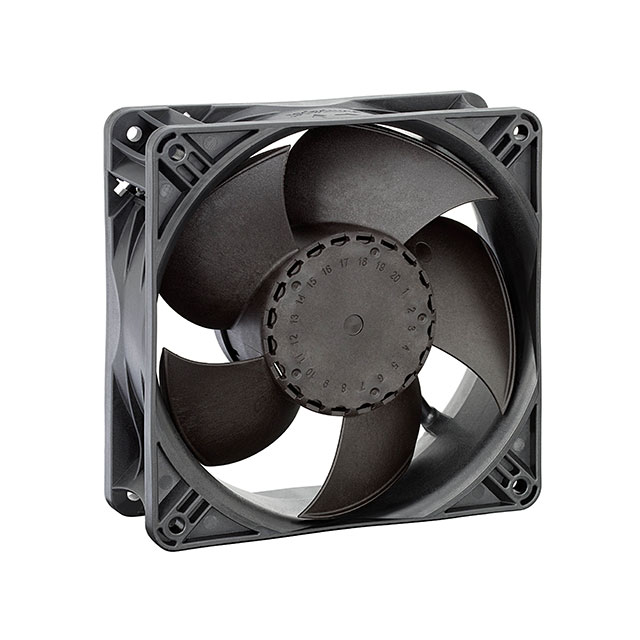

ACI4400HHAU

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 100-240VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsACi 4400 Series Datasheet

ACI4400HHAU

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 100-240VAC

Deep-Dive with AI

DocumentsACi 4400 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACI4400HHAU

Air Flow	2.88 mł/min
Air Flow	103 CFM
Approval Agency	cURus, CSAus
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Electronic Commutation (EC), Locked Rotor Sensor, Speed Sensor (Tach)
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lifetime @ Temp.	100000 Hrs
Material - Blade	Polyamide (PA), Nylon
Noise	43 dB
Operating Temperature [Max]	75 °C
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	4.5 W
RPM	3300 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	4 Terminals
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Voltage Range [Max]	264 VAC
Voltage Range [Min]	90 VAC
Weight	0.606 lb
Weight	274.88 g
Width [y]	38 mm

ACI4400 Series

Part	Weight	Weight	Power (Watts)	Features	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	RPM	Size / Dimension [y]	Size / Dimension [x]	Termination	Width [y]	Approval Agency	Fan Type	Air Flow	Air Flow	Voltage - Rated [Min]	Voltage - Rated [Max]	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Material - Blade	Termination	Ingress Protection
ebm-papst Inc. ACI4400H	0.606 lb	274.88 g	3.8 W	Electronic Commutation (EC) Locked Rotor Sensor	Ball	90 VAC	264 VAC	3000 RPM	119 mm	119 mm	2 Terminals	38 mm	CSAus cURus	Tubeaxial	103 CFM	2.88 mł/min	100 VAC	240 VAC	43 dB	75 °C	-40 °C	75 ░C	-40 °C	100000 Hrs	Nylon Polyamide (PA)
ebm-papst Inc. ACI4400/2HHP	0.606 lb	274.88 g	4.5 W	Electronic Commutation (EC) Locked Rotor Sensor PWM Control Speed Sensor (Tach)	Ball	90 VAC	264 VAC	3300 RPM	119 mm	119 mm		38 mm	CSAus cURus	Tubeaxial	103 CFM	2.88 mł/min	100 VAC	240 VAC	43 dB	75 °C	-40 °C	75 ░C	-40 °C	100000 Hrs	Nylon Polyamide (PA)	5 Terminals
ebm-papst Inc. ACI4400L	0.606 lb	274.88 g	1.1 W	Electronic Commutation (EC) Locked Rotor Sensor	Ball	90 VAC	264 VAC	1500 RPM	119 mm	119 mm		38 mm	CSAus cURus	Tubeaxial	46 CFM	1.29 mł/min	100 VAC	240 VAC	23 dB(A)	75 °C	-40 °C	75 ░C	-40 °C	100000 Hrs	Nylon Polyamide (PA)	3 Terminals
ebm-papst Inc. ACI4400HHAU	0.606 lb	274.88 g	4.5 W	Electronic Commutation (EC) Locked Rotor Sensor Speed Sensor (Tach)	Ball	90 VAC	264 VAC	3300 RPM	119 mm	119 mm		38 mm	CSAus cURus	Tubeaxial	103 CFM	2.88 mł/min	100 VAC	240 VAC	43 dB	75 °C	-40 °C	75 ░C	-40 °C	100000 Hrs	Nylon Polyamide (PA)	4 Terminals	IP65 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	36	$ 128.39

Description

General part information

ACI4400 Series

Fan Tubeaxial 100 ~ 240VAC Square - 119mm L x 119mm H Ball 103.0 CFM (2.88mł/min) 4 Terminals

Documents

Technical documentation and resources

ACi 4400 Series

Datasheet
