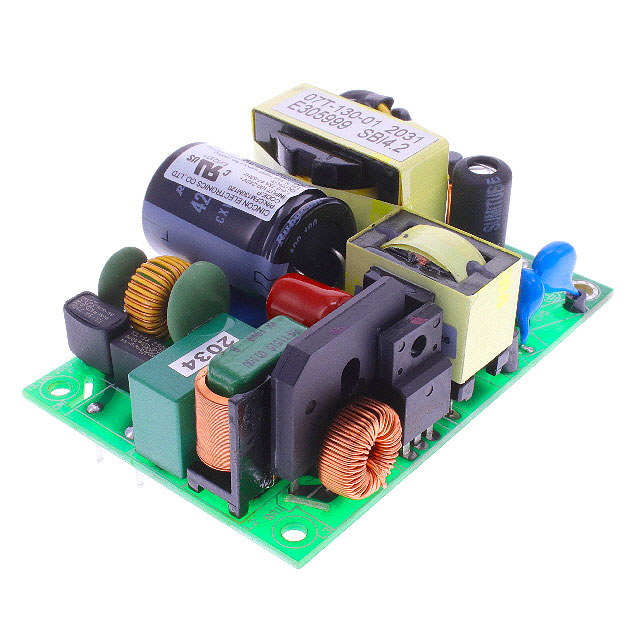

CFM130M120-P

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 130W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM130M120-P

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 130W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 65.00
		5	$ 63.05
		10	$ 61.16
		25	$ 59.32
		50	$ 56.95
		100	$ 54.10
		250	$ 25.24

Description

General part information

CFM130 Series

Open Frame AC DC Converters 1 Output 12V 10.8A 80 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFM130M120-P	CFM130 Series

Applications	Medical	Household Appliances, Medical, Household Appliances, ITE (Commercial), Medical
Approval Agency	-	CE, cURus, FCC, TUV, DEMKO
Current - Output (Max) [Max]	10.8 A	10.8 A
Current - Output 1	-	2.1 - 8.34 A
Efficiency	93 %	93 - 94 %
Features	Universal Input	PFC, Universal Input, Standby Output
Line Regulation	0.5 %	0.5 %
Load Regulation	1 %	1 %
Minimum Load Required	-	False
Mounting Type	-	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-30 °C	-30 °C
Power (Watts)	130 W	100 - 130 W
Power (Watts)	-	130 W
Size / Dimension	-	3 - 3.6 in
Size / Dimension	-	30.5 - 34.5 mm
Size / Dimension	-	2 - 2.52 in
Size / Dimension	-	76.2 - 91.4 mm
Size / Dimension	-	50.8 - 64 mm
Size / Dimension	-	1.2 - 1.36 "
Standard Number	-	60335-1, 60601-1, 62368-1
Type	Open Frame	Open Frame, Enclosed
Voltage - Input [Max]	264 VAC	240 - 264 VAC
Voltage - Input [Min]	80 VAC	80 - 100 VAC
Voltage - Isolation	-	4000 V
Voltage - Output 1	12 V	12 - 48 V

CFM130 Series

AC/DC CONVERTER 48V 101W

Part	Mounting Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Applications	Power (Watts)	Power (Watts)	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Type	Current - Output 1	Features	Standard Number	Line Regulation	Current - Output (Max) [Max]	Load Regulation
Cincon Electronics Co. LTD CFM130M480-B	Chassis Mount	1	3.6 in	33.1 mm	2 in	91.4 mm	50.8 mm	1.3 "	4000 V	Household Appliances, Medical	130 W	101 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	94 %	48 V	Open Frame	2.1 A
Cincon Electronics Co. LTD CFM130M360-B	Chassis Mount	1	3.6 in	33.1 mm	2 in	91.4 mm	50.8 mm	1.3 "	4000 V	Household Appliances, Medical	130 W	101 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	94 %	36 V	Open Frame	2.8 A
Cincon Electronics Co. LTD CFM130M120-C	Chassis Mount	1	3.6 in	34.5 mm	2.52 "	91.4 mm	64 mm	1.36 "	4000 V	Household Appliances, Medical	130 W	100 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	93 %	12 V	Enclosed	8.34 A	PFC, Universal Input
Cincon Electronics Co. LTD CFM130S240-B	Chassis Mount	1	3.6 in	33 mm	2 in	91.4 mm	50.8 mm	1.3 "	4000 V	Household Appliances, ITE (Commercial)	130 W	101 W	CE, cURus, DEMKO, FCC	240 VAC	100 VAC	70 °C	-30 °C	93 %	24 V	Open Frame	4.2 A	PFC, Standby Output, Universal Input	60335-1, 60601-1, 62368-1
Cincon Electronics Co. LTD CFM130M360-C	Chassis Mount	1	3.6 in	34.5 mm	2.52 "	91.4 mm	64 mm	1.36 "	4000 V	Household Appliances, Medical	130 W	101 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	94 %	36 V	Enclosed	2.8 A	PFC, Universal Input
Cincon Electronics Co. LTD CFM130M120-P		1								Medical		130 W		264 VAC	80 VAC	70 °C	-30 °C	93 %	12 V	Open Frame		Universal Input		0.5 %	10.8 A	1 %
Cincon Electronics Co. LTD CFM130M120	Chassis Mount	1	3 "	30.5 mm	2 in	76.2 mm	50.8 mm	1.2 "	4000 V	Household Appliances, Medical	130 W	100 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	93 %	12 V	Open Frame	8.34 A	PFC, Universal Input
