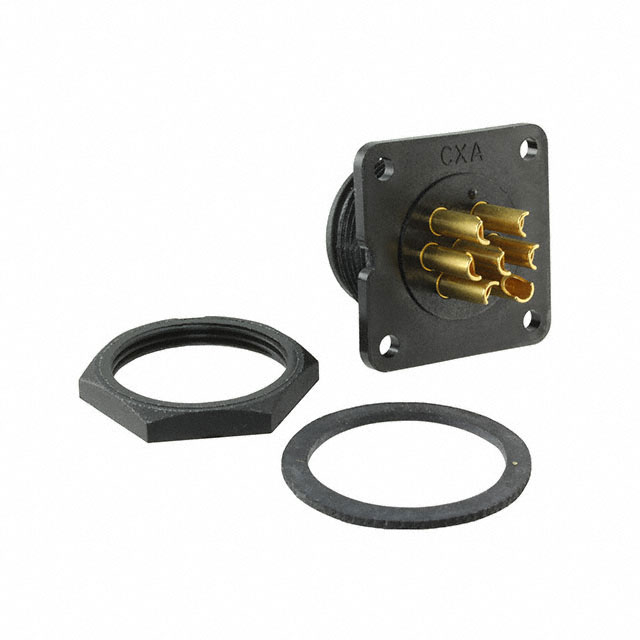

14182-7SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	14182-7SG-300

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut, Flange
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Orientation	Ingress Protection	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Mounting Feature	Color	Primary Material	Contact Finish - Mating	Voltage Rating	Contact Material	Shielding
Conxall/Switchcraft 14182-7SG-300	Keyed	Weathertight	7	-40 °C	115 °C	Receptacle, Female Sockets	Bayonet Lock	Bulkhead - Front Side Nut, Flange	Black	Plastic	Gold	600 V	Brass	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
