903-518J-71P

Active

Amphenol RF

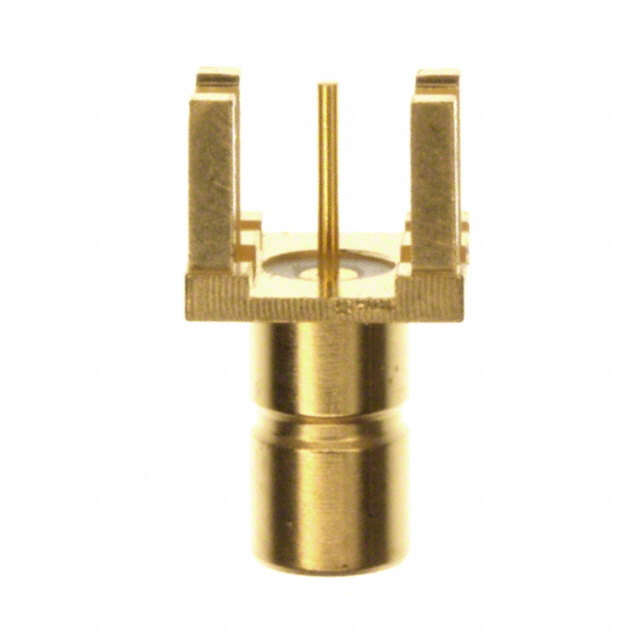

CONN SMB JACK STR 75OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB JACK STR 75OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	903-518J-71P

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Insertion Loss	Connector Style	Body Finish	Frequency - Max [Max]	Fastening Type	Dielectric Material	Mating Cycles	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Number of Ports	Impedance	Connector Type	Contact Termination	Shield Termination	Center Contact Plating	Body Material
Amphenol RF 903-518J-71P	0.3 dB	SMB	Gold	4 GHz	Snap-On	Polytetrafluoroethylene (PTFE)	500	Board Edge End Launch	Gold	-65 ░C	165 °C	Beryllium Copper	1	75 Ohms	Jack Male Pin	Solder	Solder	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.70

General part information

SMB Connector Jack, Male Pin 75 Ohms Board Edge, End Launch Solder
