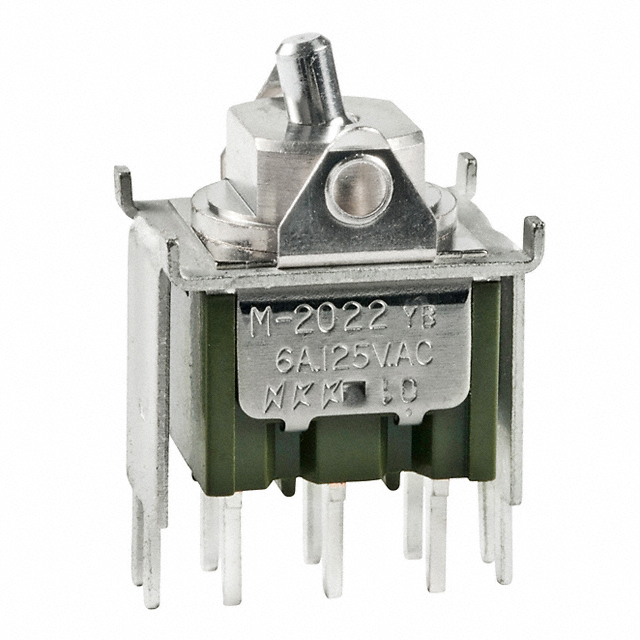

M2022TZW13

Obsolete

NKK Switches

SWITCH ROCKER DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Circuit	Approval Agency	Electrical Life	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Marking	Mounting Type	Actuator Type	Features	Switch Function
NKK Switches M2022TZW13-JC	PC Pin	DPDT	CSA UL	25000 Steps	125 V	Red	4 A 6 A	-30 ░C	85 °C	30 V	No Marking	Through Hole	Concave (Standard V)	Epoxy Sealed Terminals	On-On
NKK Switches M2022TZW13-JA	PC Pin	DPDT	CSA UL	25000 Steps	125 V	Black	4 A 6 A	-30 ░C	85 °C	30 V	No Marking	Through Hole	Concave (Standard V)	Epoxy Sealed Terminals	On-On
NKK Switches M2022TZW13/U-JA	PC Pin	DPDT	CSA UL	25000 Steps	125 V	Black	6 A	-30 ░C	85 °C		No Marking	Through Hole	Concave (Standard V)	Epoxy Sealed Terminals	On-On
NKK Switches M2022TZW13/UC	PC Pin	DPDT	CSA UL	25000 Steps	125 V		6 A	-30 ░C	85 °C		Varies by Cap	Through Hole	Actuator Arm Cap Required	Epoxy Sealed Terminals	On-On
NKK Switches M2022TZW13	PC Pin	DPDT	CSA UL	25000 Steps	125 V		4 A 6 A	-30 ░C	85 °C	30 V	Varies by Cap	Through Hole	Actuator Arm Cap Required	Epoxy Sealed Terminals	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 6A (AC), 4A (DC) 125 V Through Hole
