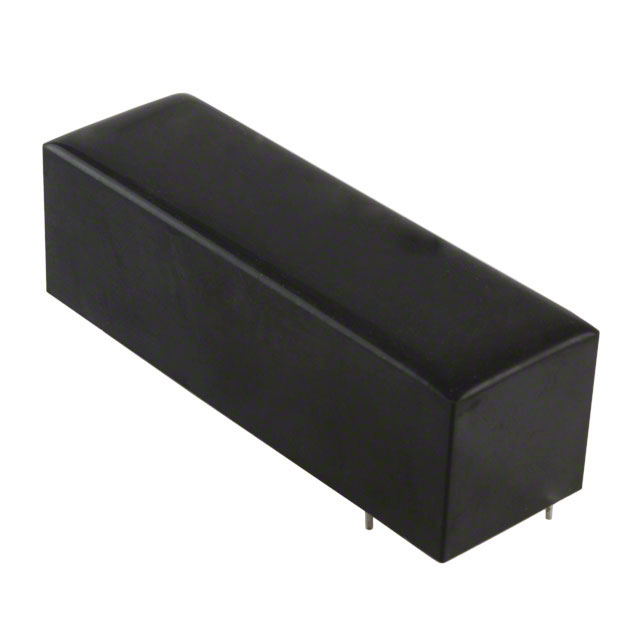

K81C235

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE SPDT 5A 12V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE SPDT 5A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 5A 12V

Part	Coil Resistance	Contact Form	Release Time	Must Release Voltage	Switching Voltage [Max]	Coil Voltage	Mounting Type	Coil Current	Operate Time	Relay Type	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Termination Style	Contact Rating (Current)
TE Connectivity Aerospace, Defense and Marine K81C235	70 Ohms	SPDT (1 Form C)	10 ms	0.5 VDC	10000 VDC	12 VDC	Through Hole	171.4 mA	10 ms	General Purpose	Non Latching	85 °C	-55 °C	8 VDC	PC Pin	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
