CMU1519-0000-000N0U0A27G

Active

CreeLED, Inc.

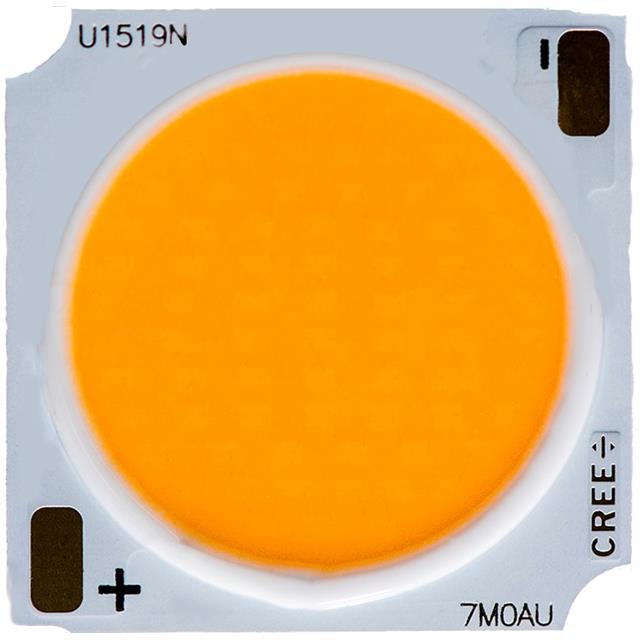

LED COB XLAMP WARM WHT SQU 2700K

CMU1519-0000-000N0U0A27G

Active

CreeLED, Inc.

LED COB XLAMP WARM WHT SQU 2700K

Description Specifications Series Pricing CAD Documents

Description

General part information

CMU1519 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1519 White, Warm Square

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1519-0000-000N0U0A27G

CCT (K)	2700 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max	1.44 A
Current - Test	540 mA
Height	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	14.5 mm
Lumens/Watt	134 lm/W
Luminous Flux (Typical)	2436 lm
Size / Dimension Length	19 mm
Size / Dimension Width	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1519 Series

...

Part	Type	Color	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Lens Type	Configuration	Lumens/Watt	Current - Test	Height	Size / Dimension Width	Size / Dimension Length	Light Emitting Surface (LES) Diameter	Luminous Flux (Typical)	CCT (K)	CCT Description	Current - Max	Viewing Angle	Temperature - Test
CreeLED, Inc. CMU1519-R090-000N0H0A57G	Chip On Board (COB)	Cool White	80	34.4 V	Flat	Square	163 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	3030 lm	5700 K	3-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-000N0U0A30U	Chip On Board (COB)	Warm White	90	34.4 V	Flat	Square	128 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	2383 lm	3000 K	3-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-0000-000N0U0A27G	Chip On Board (COB)	Warm White	90	33.7 V	Flat	Square	134 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	2436 lm	2700 K	3-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-000N0U0A40G	Chip On Board (COB)	Warm White	90	34.4 V	Flat	Square	138 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	2571 lm	4000 K	3-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-000N0Z0A40H	Chip On Board (COB)	Neutral White	95	34.4 V	Flat	Square	125 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	2322 lm	4000 K	2-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-00PN0Z0A35H	Chip On Board (COB)	Warm White	95	33.7 V	Flat	Square		540 mA	1.5 mm	19 mm	19 mm	14.5 mm		3500 K		1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-000N0U0A40H	Chip On Board (COB)	Neutral White	90	34.4 V	Flat	Square	138 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	2571 lm	4000 K	2-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-00PN0Z0A40H	Chip On Board (COB)	Neutral White	95	33.7 V	Flat	Square		540 mA	1.5 mm	19 mm	19 mm	14.5 mm		4000 K		1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-000N0B0A50E	Chip On Board (COB)	Cool White	70	34.4 V	Flat	Square	178 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	3302 lm	5000 K	5-Step MacAdam Ellipse	1.44 A	115 °	85 °C
CreeLED, Inc. CMU1519-R090-000N0U0A57G	Chip On Board (COB)	Cool White	90	34.4 V	Flat	Square	142 lm/W	540 mA	1.5 mm	19 mm	19 mm	14.5 mm	2631 lm	5700 K	3-Step MacAdam Ellipse	1.44 A	115 °	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
