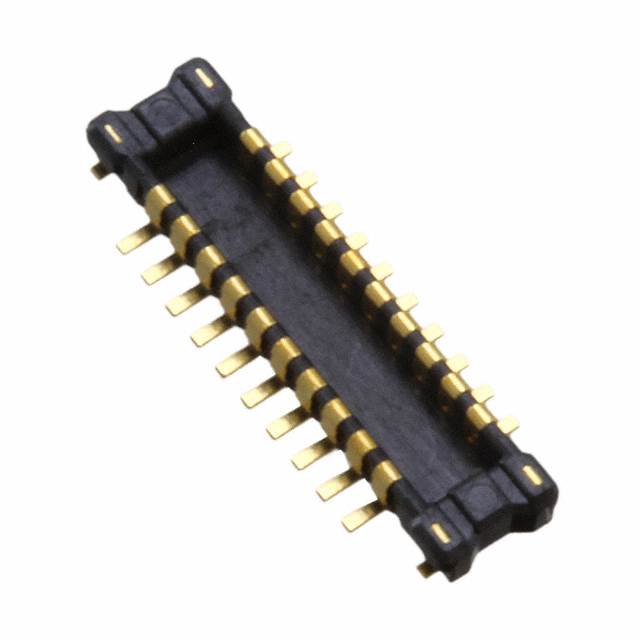

AXE622124

Obsolete

Panasonic Electric Works

CONN HDR 22POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 22POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE622124

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Features	Number of Positions	Contact Finish	Connector Type	Pitch [x]	Pitch [x]
Panasonic Electric Works AXE622124	Surface Mount	2	0.026 in	0.65 mm	0.8 mm	Solder Retention	22 positions	Gold	Header Outer Shroud Contacts	0.016 in	0.4 mm
