5-104076-5
ActiveTE Connectivity AMP Connectors

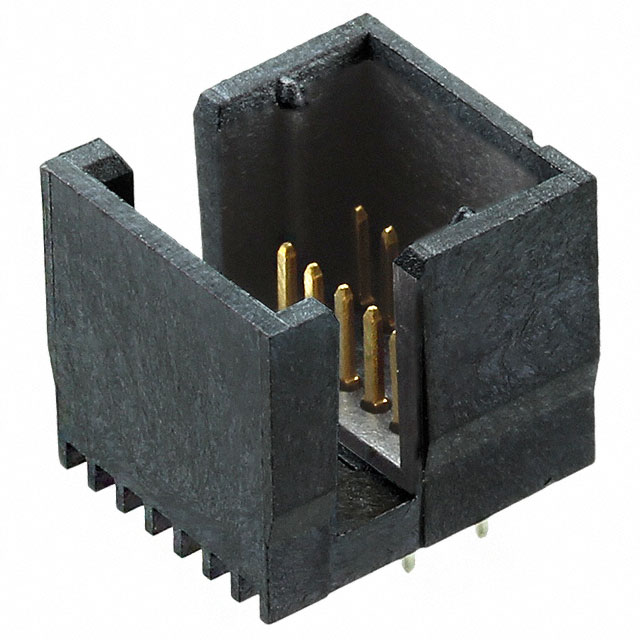

CONN HEADER VERT 10POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-104076-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104076-5 | 104076 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 0.125 in | 0.125 in |
| Contact Length - Mating | 3.18 mm | 3.18 mm |
| Contact Length - Post | 2.54 mm | 2.54 mm |
| Contact Length - Post | 0.1 in | 0.1 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Card Slot | Card Slot |
| Insulation Color | Black | Black |
| Insulation Height [z] | 9.91 mm | 9.91 mm |
| Insulation Height [z] | 0.39 in | 0.39 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 3 Wall | Shrouded - 3 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1530 | $ 2.44 | |
104076 Series
CONN HEADER VERT 10POS 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Fastening Type | Insulation Material | Number of Rows | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Number of Positions | Contact Length - Mating | Contact Length - Mating | Termination | Insulation Color | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Features | Connector Type | Material Flammability Rating | Shrouding | Voltage Rating | Contact Finish - Mating | Contact Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104076-5 | 150 Áin | 3.81 Ám | Board to Board, Cable | Push-Pull | Thermoplastic | 2 | 0.05 in | 1.27 mm | Through Hole | Tin-Lead | 9.91 mm | 0.39 in | -65 ░C | 105 ░C | All | 10 | 0.125 in | 3.18 mm | Solder | Black | Male Pin | 2.54 mm | 0.1 in | Card Slot | Header | UL94 V-0 | Shrouded - 3 Wall | 30 VAC | Gold | Copper Alloy | Automotive, General Purpose, Medical, Telecommunications | 30 Áin | 0.76 Ám | Circular | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 104076-1 | 150 Áin | 3.81 Ám | Board to Board, Cable | Push-Pull | Thermoplastic | 2 | 0.05 in | 1.27 mm | Through Hole | Tin-Lead | 9.91 mm | 0.39 in | -65 ░C | 105 ░C | All | 20 | 0.125 in | 3.18 mm | Solder | Black | Male Pin | 2.54 mm | 0.1 in | Card Slot | Header | UL94 V-0 | Shrouded - 3 Wall | 30 VAC | Gold | Copper Alloy | Automotive, General Purpose, Medical, Telecommunications | 30 Áin | 0.76 Ám | Circular | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 5-104076-1 | 150 Áin | 3.81 Ám | Board to Board, Cable | Push-Pull | Thermoplastic | 2 | 0.05 in | 1.27 mm | Through Hole | Tin | 9.91 mm | 0.39 in | -65 ░C | 105 ░C | All | 20 | 0.125 in | 3.18 mm | Solder | Black | Male Pin | 2.54 mm | 0.1 in | Card Slot | Header | UL94 V-0 | Shrouded - 3 Wall | 30 VAC | Gold | Copper Alloy | Automotive, General Purpose, Medical, Telecommunications | 30 Áin | 0.76 Ám | Circular | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 104076-7 | 150 Áin | 3.81 Ám | Board to Board, Cable | Push-Pull | Thermoplastic | 2 | 0.05 in | 1.27 mm | Through Hole | Tin-Lead | 9.91 mm | 0.39 in | -65 ░C | 105 ░C | All | 50 | 0.125 in | 3.18 mm | Solder | Black | Male Pin | 2.54 mm | 0.1 in | Card Slot | Header | UL94 V-0 | Shrouded - 3 Wall | 30 VAC | Gold | Copper Alloy | Automotive, General Purpose, Medical, Telecommunications | 30 Áin | 0.76 Ám | Circular | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 5-104076-5 | 150 Áin | 3.81 Ám | Board to Board, Cable | Push-Pull | Thermoplastic | 2 | 0.05 in | 1.27 mm | Through Hole | Tin | 9.91 mm | 0.39 in | -65 ░C | 105 ░C | All | 10 | 0.125 in | 3.18 mm | Solder | Black | Male Pin | 2.54 mm | 0.1 in | Card Slot | Header | UL94 V-0 | Shrouded - 3 Wall | 30 VAC | Gold | Copper Alloy | Automotive, General Purpose, Medical, Telecommunications | 30 Áin | 0.76 Ám | Circular | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 5-104076-8 | 150 Áin | 3.81 Ám | Board to Board, Cable | Push-Pull | Thermoplastic | 2 | 0.05 in | 1.27 mm | Through Hole | Tin | 9.91 mm | 0.39 in | -65 ░C | 105 ░C | All | 100 | 0.125 in | 3.18 mm | Solder | Black | Male Pin | 2.54 mm | 0.1 in | Card Slot | Header | UL94 V-0 | Shrouded - 3 Wall | 30 VAC | Gold | Copper Alloy | Automotive, General Purpose, Medical, Telecommunications | 30 Áin | 0.76 Ám | Circular | 2.54 mm | 0.1 in |
Description
General part information
104076 Series
Connector Header Through Hole 10 position 0.050" (1.27mm)
