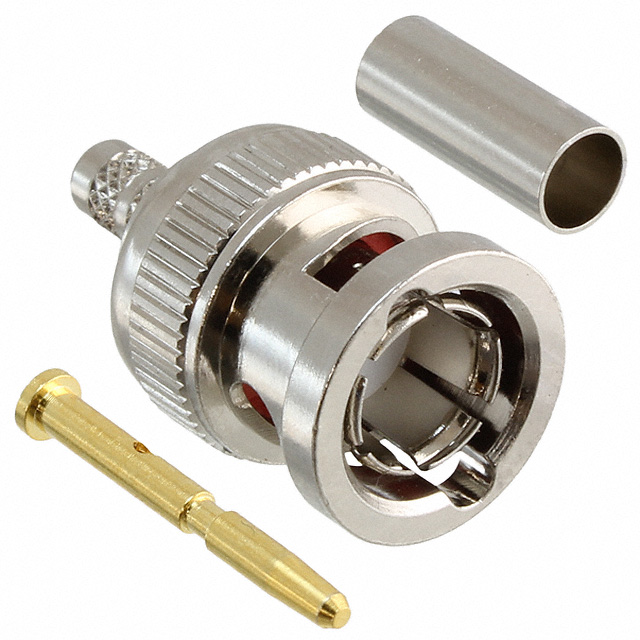

112955-11

Active

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	112955-11

Body Finish	Nickel
Body Material	Brass
Cable Group	195, Belden 1855, 180B, 1865A, 180A, 180, RG-122
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Insertion Loss	Voltage Rating	Mounting Type	Frequency - Max [Max]	Connector Style	Connector Type	Includes	Center Contact Material	Dielectric Material	Shield Termination	Impedance	Fastening Type	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Housing Color	Cable Group	Body Finish	Mating Cycles	Contact Termination
Amphenol RF 112955-11	0.2 dB	500 V	Free Hanging (In-Line)	6000 MHz	BNC	Male Pin Plug	1 Connector 1 Contact 1 Ferrule	Brass	Polytetrafluoroethylene (PTFE)	Crimp	75 Ohms	Bayonet Lock	1	-65 ░C	165 °C	Gold	Brass	Silver	180 180A 180B 1865A 195 Belden 1855 RG-122	Nickel	500	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
