UX7032D0200.000000

Obsolete

Diodes Inc

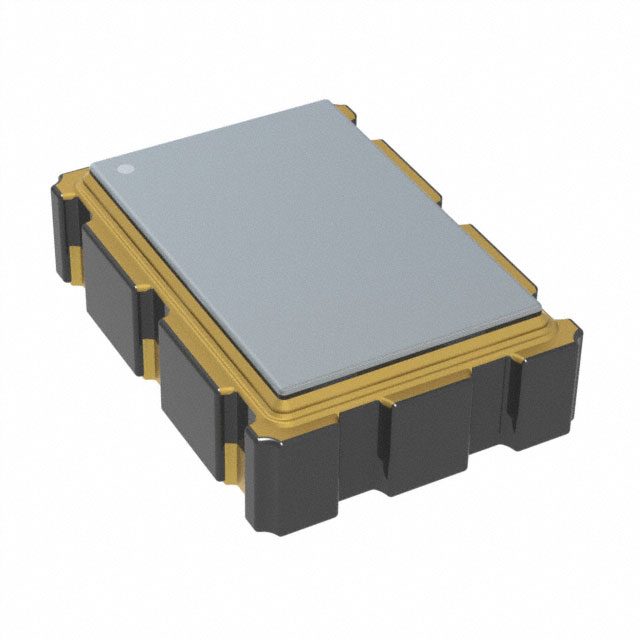

XTAL OSC XO 200.0000MHZ LVDS SMD

Search across all available documentation for this part.

Obsolete

Diodes Inc

XTAL OSC XO 200.0000MHZ LVDS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	UX7032D0200.000000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	30 ÁA
Frequency	200 MHz
Frequency Stability	25 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	6-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	XO (Standard)
Voltage - Supply	2.5 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Type	Current - Supply (Disable) (Max) [Max]	Package / Case	Mounting Type	Base Resonator	Voltage - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Output	Operating Temperature [Max]	Operating Temperature [Min]	Function
Diodes Inc UX7032D0200.000000	7 mm	5 mm	0.276 "	0.197 "	25 ppm	XO (Standard)	30 ÁA	6-SMD No Lead	Surface Mount	Crystal	2.5 V	2 mm	0.079 in	200 MHz	LVDS	85 °C	-40 °C	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

200 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
