2-794550-0
ObsoleteTE Connectivity AMP Connectors

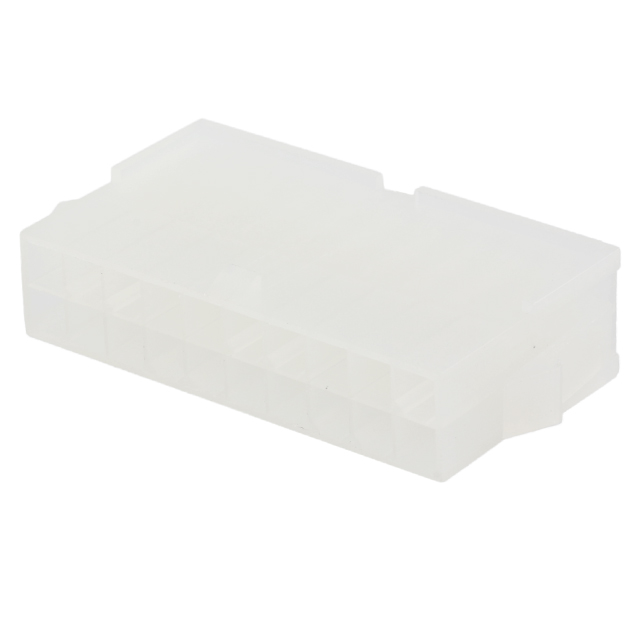

CONN PLUG HSG 20POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-794550-0
ObsoleteTE Connectivity AMP Connectors
CONN PLUG HSG 20POS 4.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-794550-0 | 794550 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | - | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 2 - 20 |
| Number of Rows | 2 | 2 |
| Operating Temperature | - | 105 ░C |
| Operating Temperature | - | -55 °C |
| Pitch [x] | 4.2 mm | 4.2 mm |
| Pitch [x] | 0.165 in | 0.165 in |
| Row Spacing | 4.2 mm | 4.2 mm |
| Row Spacing | 0.165 in | 0.165 in |
794550 Series
CONN PLUG HSG 6POS 4.20MM
| Part | Fastening Type | Note | Color | Contact Type | Number of Rows | Number of Positions | Row Spacing | Row Spacing | Mounting Type | Connector Type | Pitch [x] | Pitch [x] | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794550-6 | Locking Ramp | Contacts Not Included | Natural | Male Pin | 2 | 6 | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Plug | 4.2 mm | 0.165 in | Crimp | |||
TE Connectivity AMP Connectors 1-794550-8 | Locking Ramp | Contacts Not Included | Natural | Male Pin | 2 | 18 | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Plug | 4.2 mm | 0.165 in | Crimp | |||
TE Connectivity AMP Connectors 794550-2 | Locking Ramp | Contacts Not Included | Natural | Male Pin | 2 | 2 | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Plug | Crimp | 105 ░C | -55 °C | Nylon, Polyamide (PA) | ||
TE Connectivity AMP Connectors 2-794550-0 | Locking Ramp | Contacts Not Included | Natural | Male Pin | 2 | 20 | 4.2 mm | 0.165 in | Panel Mount, Snap-In | Plug | 4.2 mm | 0.165 in | Crimp |
