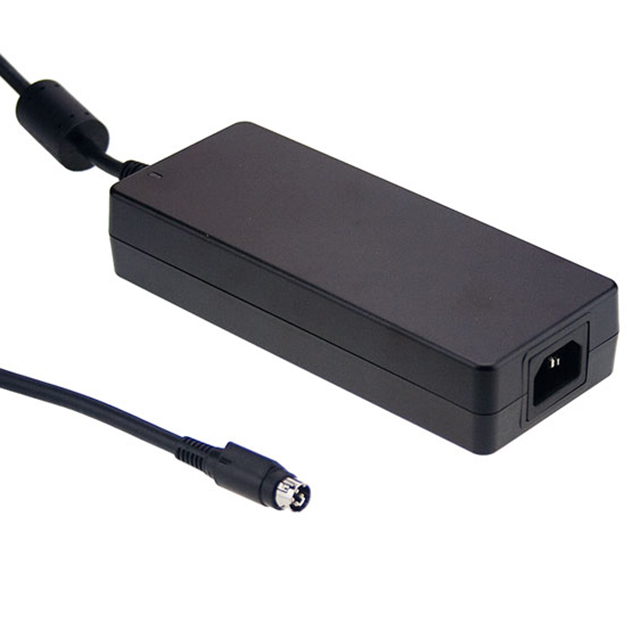

GC160A48-AD1
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 54.4V 2.95A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC160A48-AD1
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 54.4V 2.95A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC160A48-AD1 |
|---|---|
| Approval Agency | GS, CB, UL, CE, cULus |
| Battery Cell Size | 48 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 2.95 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 160.5 W |
| Size / Dimension [x] | 6.89 in |
| Size / Dimension [x] | 175 mm |
| Size / Dimension [y] | 2.83 in |
| Size / Dimension [y] | 72 mm |
| Size / Dimension [z] | 1.38 in |
| Size / Dimension [z] | 35 mm |
| Termination Style | Rectangular Connector |
| Type | Desktop |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Nominal | 54.4 V |
| Weight | 700 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.47 | |
| 5 | $ 48.06 | |||
| 10 | $ 47.06 | |||
| 25 | $ 45.78 | |||
Description
General part information
GC160A48 Series
Desktop Battery Charger 54.4V 2.95A 48V
