M3BRK-1606R
Active3M
IDC CABLE - MSR16K/MC16M/MPR16K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3BRK-1606R | M3BRK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Strain Relief (Socket), Strain Relief (Plug), Polarizing Key | Strain Relief (Socket), Strain Relief (Plug), Polarizing Key |
| Length | 152.4 mm | 1.52 - 508 m |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.67 - 5 ' |
| Length | - | 1.02 - 914.4 mm |
| Length | - | 1.5 - 3.34 ft |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 60 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3BRK Series
IDC CABLE - MSR34K/MC34F/MPR34K
| Part | Number of Positions | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Shielding | Pitch - Cable | Pitch - Cable | Cable Termination | Length | Length | Contact Finish | Features | Connector Type | Color | Length [x] | Length [x] | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
34 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | 1.52 m | 5 ' | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Twisted Pair (Flat) | ||||||
24 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Ribbon | 457.2 mm | 1.5 ft | ||||||
20 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Ribbon | 457.2 mm | 1.5 ft | ||||||
34 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Ribbon | 914.4 mm | 3 ft | ||||||
20 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | 914.4 mm | 3 ft | |||||||
20 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | 152.4 mm | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Ribbon | 6 " | 0.5 ' | |||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | 152.4 mm | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Ribbon | 6 " | 0.5 ' | 16 | |||||
26 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | 914.4 mm | 3 ft | |||||||
26 | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Twisted Pair (Flat) | 1.02 m | 3.34 ft | ||||||
0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 2 | Unshielded | 0.05 " | 1.27 mm | IDC | Gold | Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | Socket to Plug | Multiple, Ribbon | 457.2 mm | 1.5 ft | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.43 | |
| 10 | $ 14.96 | |||
| 25 | $ 13.53 | |||
| 50 | $ 12.57 | |||
| 100 | $ 11.70 | |||
| 250 | $ 10.67 | |||
| 500 | $ 9.98 | |||
| 1000 | $ 9.39 | |||
Description
General part information
M3BRK Series

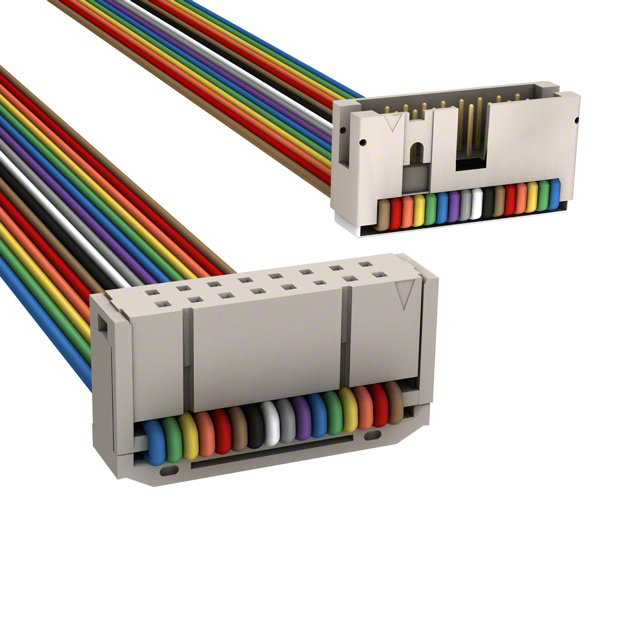

16 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
