Q-280500013108i

Active

Amphenol Custom Cable

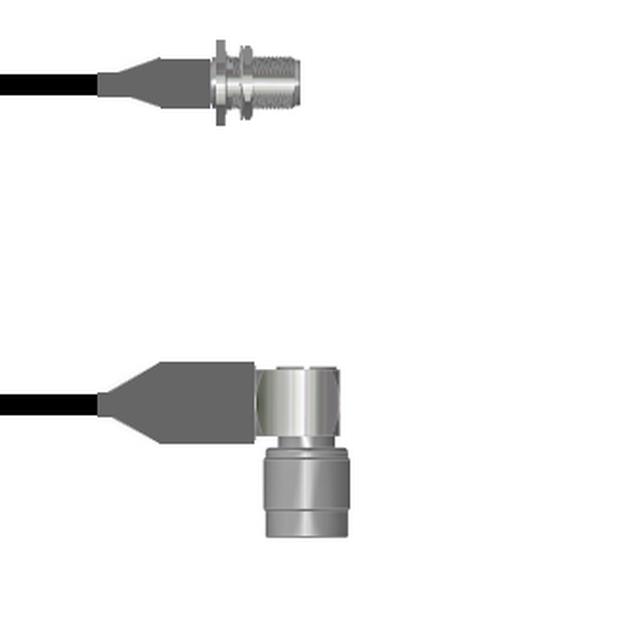

CBL ASSY NTYPE-TNC JACK-PLUG 9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-280500013108i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms

Part	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector Mounting Feature	2nd Contact Gender	1st Connector	1st Contact Gender	Overall Impedance	Cable Type	Color	Length	Length	Length	Frequency - Max [Max]	Features
Amphenol Custom Cable Q-280500013108i	TNC Plug Right Angle	Free Hanging (In-Line)	Panel Mount	Bulkhead - Front Side Nut	Male	N-Type Jack	Female	50 Ohms	LMR 400	Black	2.7 m	9 ft	108 in	6000 MHz	Shielded
Amphenol Custom Cable Q-280500013084i	TNC Plug Right Angle	Free Hanging (In-Line)	Panel Mount	Bulkhead - Front Side Nut	Male	N-Type Jack	Female	50 Ohms	LMR 400	Black	2.1 m	7 ft	84 in	6000 MHz	Shielded
Amphenol Custom Cable Q-2805000131.5M	TNC Plug Right Angle	Free Hanging (In-Line)	Panel Mount	Bulkhead - Front Side Nut	Male	N-Type Jack	Female	50 Ohms	LMR 400	Black	1.5 m	4.9 ft	59.1 in	6000 MHz	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial N-Type to TNC LMR 400 108.0" (2.7m) 9.0'

Technical documentation and resources

No documents available
