5-928344-4
ActiveTE Connectivity AMP Connectors

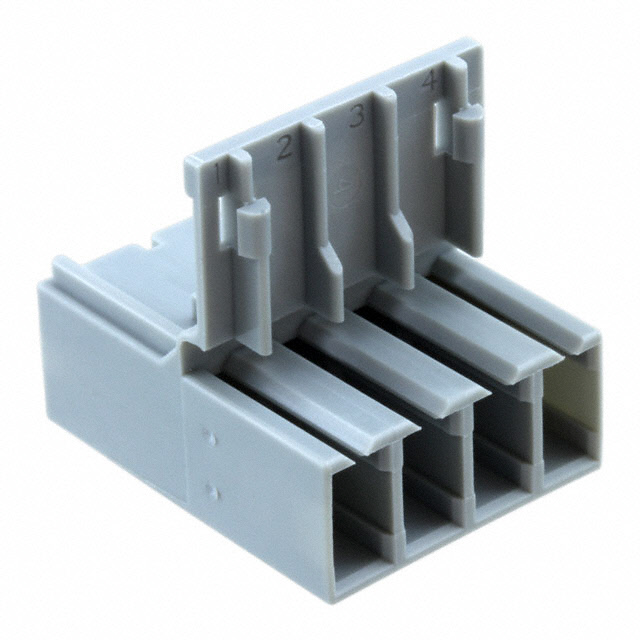

CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-928344-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-928344-4 | 928344 Series |
|---|---|---|
| Color | Gray | Gray, Natural, Black, Green, Turquoise |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Friction Lock | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 2 - 7 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
928344 Series
CONN RCPT HSG 4POS 5.00MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Fastening Type | Connector Type | Number of Positions | Note | Contact Type | Insulation Material | Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-928344-4 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 4 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Gray | Crimp |
TE Connectivity AMP Connectors 928344-5 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Natural | Crimp | |
TE Connectivity AMP Connectors 5-928344-4 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 4 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Gray | Crimp |
TE Connectivity AMP Connectors 4-928344-6 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 6 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Natural | Crimp |
TE Connectivity AMP Connectors 4-928344-7 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 7 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Crimp | |
TE Connectivity AMP Connectors 2-928344-2 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 2 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Black | Crimp |
TE Connectivity AMP Connectors 3-928344-6 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 6 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Green | Crimp |
TE Connectivity AMP Connectors 4-928344-2 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | 2 | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Turquoise | Crimp |
TE Connectivity AMP Connectors 928344-3 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Natural | Crimp | |
TE Connectivity AMP Connectors 2-928344-3 | -40 °C | 105 ░C | Free Hanging (In-Line) | 1 | 5 mm | 0.197 in | Friction Lock | Receptacle | Contacts Not Included | Female Socket | Polyamide (PA66), Nylon 6/6 | Gray | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15000 | $ 0.47 | |
Description
General part information
928344 Series
4 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)
Documents
Technical documentation and resources
