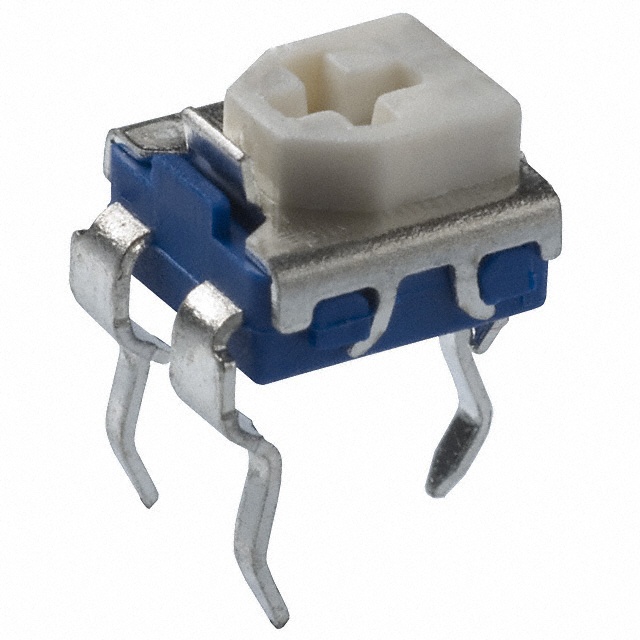

Specification	3318P-1-101

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	1 turns
Power (Watts)	100 mW
Power (Watts) Options	1/10W
Resistance	100 Ohms
Resistive Material	Carbon
Size / Dimension Length	0.264 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.252 in
Temperature Coefficient	1000 ppm/°C
Temperature Coefficient (Highest)	1000 ppm/°C
Temperature Coefficient (Lowest)	-1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

3318P Series

Part	Termination Style	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Tolerance	Adjustment Type	Resistive Material	Mounting Type	Resistance	Temperature Coefficient (Highest)	Temperature Coefficient	Temperature Coefficient (Lowest)	Number of Turns	Power (Watts)	Power (Watts) Options
Bourns Inc. 3318P-1-224	PC Pins	Rectangular	0.264 in	0.252 in	20 %	Top Adjustment	Carbon	Through Hole	220 kOhm	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	1 turns	100 mW	1/10W
Bourns Inc. 3318P-1-101	PC Pins	Rectangular	0.264 in	0.252 in	20 %	Top Adjustment	Carbon	Through Hole	100 Ohms	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	1 turns	100 mW	1/10W
