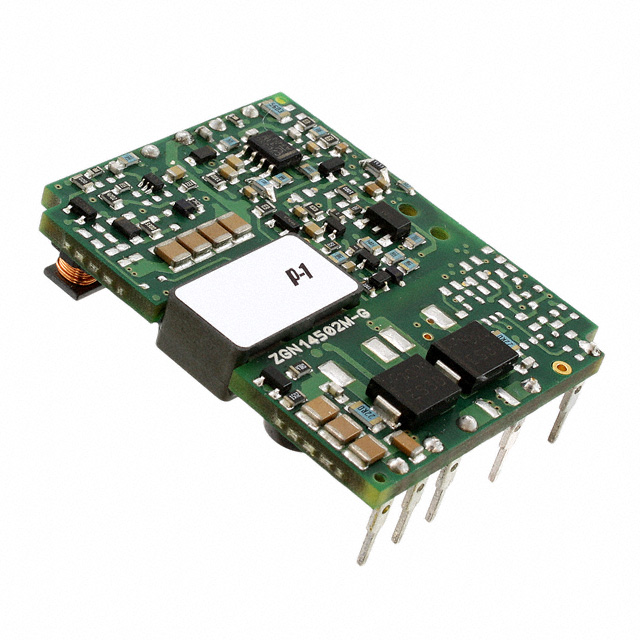

40IMX15-24-24-8ZG

Active

Bel Power Solutions

DC DC CONVERTER 24V 24V 15W

Deep-Dive with AI

Search across all available documentation for this part.

40IMX15-24-24-8ZG

Active

Bel Power Solutions

DC DC CONVERTER 24V 24V 15W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

40IMX15 Series

Isolated Module, Conformal Coated DC DC Converter 2 Output 24V 24V 350mA, 350mA 16.8V - 75V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	40IMX15-24-24-8ZG	40IMX15 Series

Applications	-	Railway, ITE (Commercial)
Current - Output (Max)	-	1.5 - 700 A
Current - Output (Max)	-	1.5 - 700 A
Current - Output (Max) [Max]	350 mA	3.5 - 350 A
Current - Output (Max) [Min]	350 mA	350 mA
Efficiency	86 %	83 - 88 %
Features	OVP, UVLO, SCP, OCP, OTP	OVP, UVLO, SCP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	17-DIP Module, 9 Leads	17-DIP Module, 17-DIP Module, 9 Leads
Package / Case	-	11 Leads
Power (Watts)	15 W	13 - 15 W
Size / Dimension	-	0.41 - 10.5 mm
Size / Dimension	-	1.61 - 40.6 mm
Size / Dimension	-	1.6 "
Size / Dimension	-	50.8 mm
Size / Dimension	-	2 in
Size / Dimension	-	0.41 "
Size / Dimension	-	40.9 mm
Size / Dimension	-	50.8 mm
Size / Dimension	-	10.4 mm
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	16.8 V	16.8 V
Voltage - Isolation	2.1 kV	2.1 kV
Voltage - Output 1	24 V	3.3 - 24 V
Voltage - Output 2	24 V	3.3 - 24 V

40IMX15 Series

DC DC CONVERTER 5.1V 15W

Part	Voltage - Input (Max) [Max]	Applications	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Output 1	Package / Case	Package / Case	Power (Watts)	Features	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Type	Mounting Type	Voltage - Output 2	Current - Output (Max) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)
Bel Power Solutions 40IMX15-05-8RG-G	75 V	ITE (Commercial), Railway	2.1 kV	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	87 %	5.1 V	11 Leads	17-DIP Module	15 W	OCP, OTP, OVP, SCP, UVLO	3.5 A	85 °C	-40 °C	16.8 V	1	Conformal Coated, Isolated Module	Through Hole
Bel Power Solutions 40IMX15-24-24-8ZG	75 V		2.1 kV							86 %	24 V		17-DIP Module, 9 Leads	15 W	OCP, OTP, OVP, SCP, UVLO	350 mA	85 °C	-40 °C	16.8 V	2	Conformal Coated, Isolated Module	Through Hole	24 V	350 mA
Bel Power Solutions 40IMX15-03-8RG	75 V	ITE (Commercial)	2.1 kV	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	83 %	3.3 V	11 Leads	17-DIP Module	15 W	OCP, OTP, OVP, SCP, UVLO	4.5 A	85 °C	-40 °C	16.8 V	1	Conformal Coated, Isolated Module	Through Hole
Bel Power Solutions 40IMX15-0503-8R	75 V	ITE (Commercial), Railway	2.1 kV	0.41 "	1.61 in		50.8 mm			84 %	5.1 V		17-DIP Module, 9 Leads	13 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO		85 °C	-40 °C	16.8 V	2	Conformal Coated, Isolated Module	Through Hole	3.3 V		40.9 mm	50.8 mm	10.4 mm	1.5 A	1.5 A
Bel Power Solutions 40IMX15-12-12-8G	75 V	ITE (Commercial), Railway	2.1 kV	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	88 %	12 V	11 Leads	17-DIP Module	15 W	OCP, OTP, OVP, SCP, UVLO		85 °C	-40 °C	16.8 V	2	Conformal Coated, Isolated Module	Through Hole	12 V					700 mA	700 mA
Bel Power Solutions 40IMX15-24-24-8G	75 V	ITE (Commercial), Railway	2.1 kV	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	86 %	24 V	11 Leads	17-DIP Module	15 W	OCP, OTP, OVP, SCP, UVLO	350 mA	85 °C	-40 °C	16.8 V	2	Conformal Coated, Isolated Module	Through Hole	24 V	350 mA
Bel Power Solutions 40IMX15-05-8RG	75 V	ITE (Commercial), Railway	2.1 kV	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	87 %	5.1 V	11 Leads	17-DIP Module	15 W	OCP, OTP, OVP, SCP, UVLO	3.5 A	85 °C	-40 °C	16.8 V	1	Conformal Coated, Isolated Module	Through Hole
