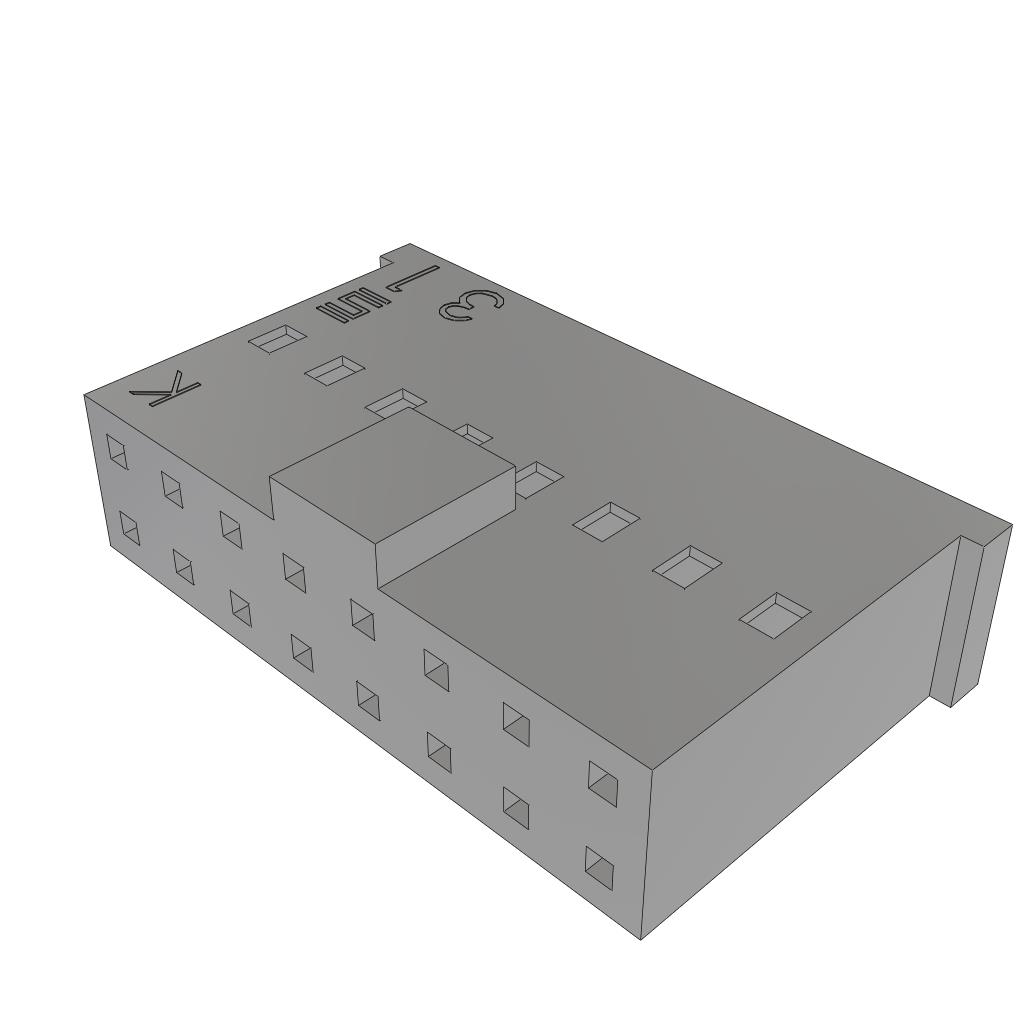

ISDM-08-K

Active

Samtec Inc.

CONN HSG 16POS 2.54MM UNIV

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HSG 16POS 2.54MM UNIV

Technical Specifications

Parameters and characteristics for this part

Specification	ISDM-08-K

Color	White
Contact Termination	Crimp
Contact Type	Female Socket
Features	Polarizing Key
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

Part	Pitch [x]	Pitch [x]	Contact Termination	Color	Number of Rows	Mounting Type	Number of Positions	Features	Row Spacing [x]	Row Spacing	Insulation Material	Contact Type	Note
Samtec Inc. ISDM-08-K	2.54 mm	0.1 in	Crimp	White	2	Free Hanging (In-Line)	16	Polarizing Key	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.03

General part information

16 Rectangular Connectors - Housings White 0.100" (2.54mm)
