T41625B9L25-002
ActiveTE Connectivity AMP Connectors

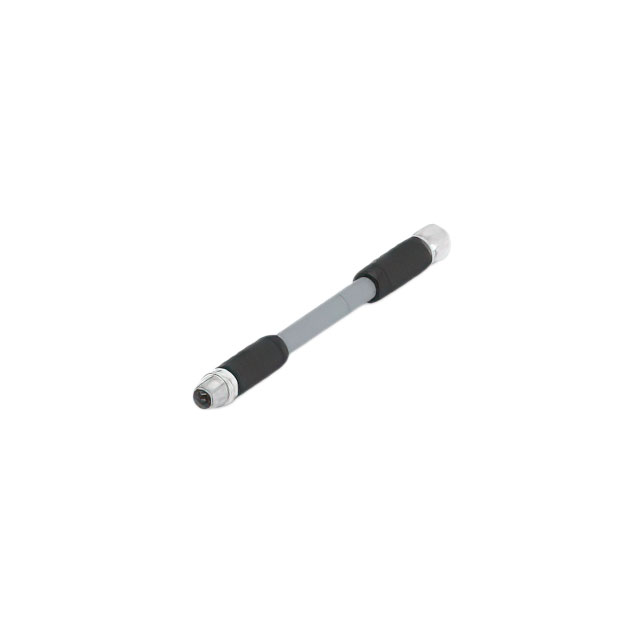

CIRC CBL 5POS RCPT TO PLUG 3.28'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T41625B9L25-002
ActiveTE Connectivity AMP Connectors
CIRC CBL 5POS RCPT TO PLUG 3.28'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T41625B9L25-002 | T41625 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 5 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 | 5 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Orientation | L | L |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Plug | Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Gray | Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 4.92 ' |
| Length | - | 1.5 m |
| Length [x] | 1 m | 1 - 500 m |
| Length [x] | 3.28 ft | 1.64 - 23 ' |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 70.61 | |
| 10 | $ 58.55 | |||
| 25 | $ 56.34 | |||
T41625 Series
CIRC CBL 5POS RCPT TO PLUG 32.8'
| Part | Usage | 2nd Connector Shell Size - Insert | 2nd Connector Gender | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Mounting Type | 1st Connector Number of Positions Loaded | 1st Connector Type | 2nd Connector Orientation | Assembly Configuration | Ingress Protection | Shielding | 1st Connector Shell Size - Insert | Cable Type | 1st Connector Gender | 2nd Connector Number of Positions Loaded | 2nd Connector Number of Positions | Cable Material | 1st Connector Number of Positions | Color | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T41625B9L25-007 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | ||||
TE Connectivity AMP Connectors T41625B9L25-005 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | ||||
TE Connectivity AMP Connectors T41625B9L25-006 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | 7 m | 23 ' | ||
TE Connectivity AMP Connectors T41625B9L25-003 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | 4.92 ' | 1.5 m | ||
TE Connectivity AMP Connectors T41625B9L25-200 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | ||||
TE Connectivity AMP Connectors T41625B9L25-002 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors T41625B9L25-020 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | 2 m | 6.56 ft | ||
TE Connectivity AMP Connectors T41625B9L25-001 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors T41625B9L25-004 | Industrial Environments | M12 | Female Sockets | Free Hanging (In-Line) | Plug | Free Hanging (In-Line) | All | Receptacle | L | Standard | IP67 - Dust Tight, Waterproof | Shielded | M12 | Round | Male Pins | All | 5 | Polyurethane (PUR) | 5 | Gray | 3 m | 9.84 ft |
Description
General part information
T41625 Series
Circular Cable Assembly Shielded 3.28' (1.00m)
