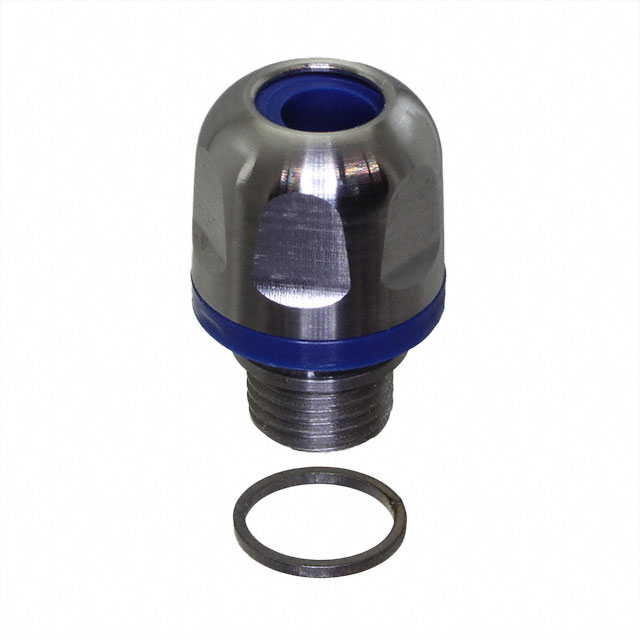

BG210VACP

Active

Pflitsch

CABLE GLAND 5-7MM M10 S STEEL

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 5-7MM M10 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	BG210VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.394 in
Panel Hole Size	10 mm
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	M10x1
Type	Cable Gland

Part	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Color	Type	Includes	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Thread Size
Pflitsch BG210VACP	0.394 in	10 mm	5 mm	0.197 in	IP66 IP68 IP69	Silver	Cable Gland	Sealing Ring	0.236 in	6 mm	7 mm	0.276 in	85 °C	-40 °C	Stainless Steel	M10x1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M10x1 Silver
