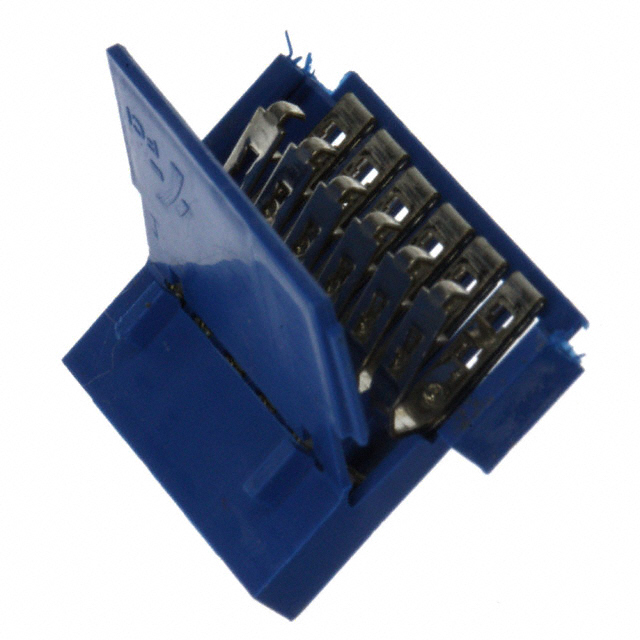

10022753-006LF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC RCPT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10022753-006LF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC RCPT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10022753-006LF	10022753 Series

Actuator Color	-	Black
Cable End Type	-	Tapered
Connector/Contact Type	Receptacle	Receptacle
Contact Finish	Tin	GXT™, Gold or Gold, Tin
Contact Finish Thickness	2.54 µm	0.76 - 2.54 Ám
Contact Finish Thickness	100 µin	30 - 100 Áin
Contact Material	Copper Nickel Alloy	Copper Nickel Alloy
Current Rating (Amps)	2 A	2 A
Features	-	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.33 mm	0.3 - 0.33 mm
Flat Flex Type	FPC, FFC	FPC, FFC, CIC
Housing Color	Blue	Blue
Housing Material	Thermoplastic	Thermoplastic
Locking Feature	Latch Lock	Latch Lock, Flip Lock, Backlock
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6 - 23
Number of Positions	-	16
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Termination	IDC	IDC, Solder
Voltage Rating	500 V	500 V

10022753 Series

CONN FFC FPC RCPT 10POS 2.54MM

Part	Flat Flex Type	Termination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Housing Material	Material Flammability Rating	Locking Feature	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	FFC, FCB Thickness	Voltage Rating	Housing Color	Number of Positions	Features	Cable End Type	Actuator Color
Amphenol ICC (FCI) 10022753-043LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Gold or Gold, GXT™	0.76 Ám	30 Áin	Copper Nickel Alloy	10	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-043	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Gold or Gold, GXT™	0.76 Ám	30 Áin	Copper Nickel Alloy	10	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-006LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy	6	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-016LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy		Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue	16
Amphenol ICC (FCI) 10022753-110LF	CIC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy	10	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-040LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Gold or Gold, GXT™	0.76 Ám	30 Áin	Copper Nickel Alloy	7	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-009LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy	9	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-014LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy	14	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-023LF	FFC, FPC	IDC	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Latch Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy	23	Free Hanging (In-Line)	2.54 mm	0.1 in	0.33 mm	500 V	Blue
Amphenol ICC (FCI) 10022753-116LF	CIC	Solder	2 A	-65 ░C	105 ░C	Receptacle	Thermoplastic	UL94 V-0	Backlock, Flip Lock	Tin	2.54 µm	100 µin	Copper Nickel Alloy		Free Hanging (In-Line)	2.54 mm	0.1 in	0.3 mm	500 V	Blue	16	Solder Retention, Zero Insertion Force (ZIF)	Tapered	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10022753 Series

6 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
