PP-038D

Active

CUI Devices

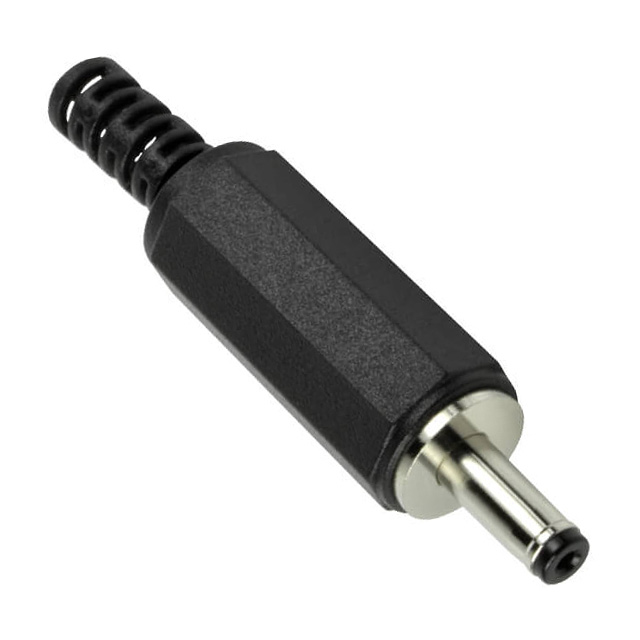

POWER PLUG, 1.35 X 3.8 X 9.5 MM,

Search across all available documentation for this part.

Active

CUI Devices

POWER PLUG, 1.35 X 3.8 X 9.5 MM,

Technical Specifications

Parameters and characteristics for this part

Specification	PP-038D

Actual Diameter	3.8 mm, 1.35 mm
Actual Diameter	0.053 in, 0.15 in
Body Color	Silver, Black
Body Material	Brass
Connector Type	Plug
Contact Material	Phosphor Bronze
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	4 A
Features	Cover, Strain Relief
Gender	Female
Housing Material	Polyvinyl Chloride (PVC)
Includes	1 Connector, 1 Cover
Insulation Color	Black
Internal Switch(s)	False
Mating Length/Depth	0.374 in
Mating Length/Depth	9.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet
Voltage - Rated	20 V

Part	Termination	Mating Length/Depth	Mating Length/Depth	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Body Color	Actual Diameter	Actual Diameter	Housing Material	Voltage - Rated	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material	Body Material	Shielding	Features	Connector Type	Gender	Insulation Color	Mounting Type	Includes	Internal Switch(s)	Contact Material - Plating [custom]
CUI Devices PP-038D	Solder Eyelet	0.374 in	9.5 mm	4 A	70 °C	-25 °C	Black Silver	1.35 mm 3.8 mm	0.053 in 0.15 in	Polyvinyl Chloride (PVC)	20 V	2	2	Phosphor Bronze	Brass	Unshielded	Cover Strain Relief	Plug	Female	Black	Free Hanging (In-Line)	1 Connector 1 Cover		Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 1.35mm ID (0.053"), 3.80mm OD (0.150") Free Hanging (In-Line)
