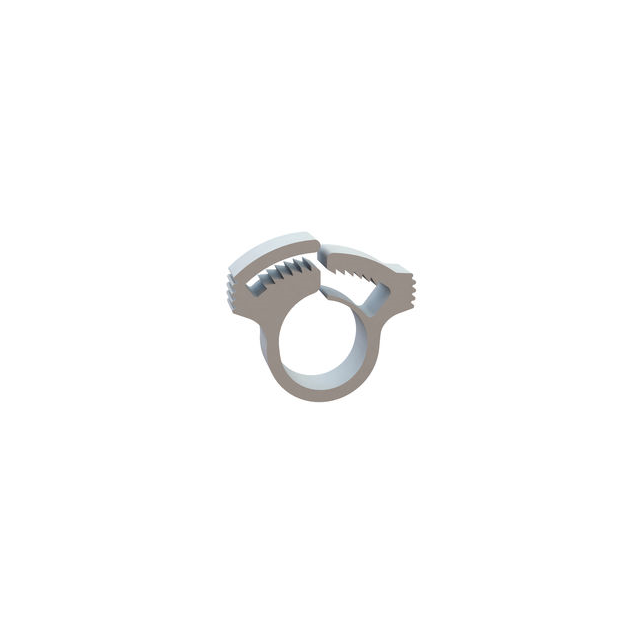

Specification	22HSC0020

Color	White
Material	Nylon 6, 6, Polyamide (PA66)
Material Flammability Rating	UL94 V-2
Material Thickness	0.07 in
Opening Size (Max)	0.395 in
Opening Size (Min)	0.36 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.23 in

22HSC Series

Part	Material Flammability Rating	Material	Width	Color	Type	Opening Size (Min)	Opening Size (Max)	Type Attributes	Material Thickness
Essentra Components 22HSC0220B	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.25 in	Black	Clamp Hose	0.9 in	1.072 in	Push-Fit
Essentra Components 22HSC0060	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.23 in	White	Clamp Hose	0.449 in	0.511 in	Push-Fit	0.07 in
Essentra Components 22HSC0120	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.23 in	White	Clamp Hose	0.616 in	0.707 in	Push-Fit	0.07 in
Essentra Components 22HSC0010	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.156 in	White	Clamp Hose	0.25 in	0.281 in	Push-Fit	0.04 in
Essentra Components 22HSC0280	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.28 in	White	Clamp Hose	1.123 in	1.296 in	Push-Fit	0.07 in
Essentra Components 22HSC0100	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.23 in	White	Clamp Hose	0.569 in	0.65 in	Push-Fit	0.07 in
Essentra Components 22HSC0190	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.23 in	White	Clamp Hose	0.859 in	0.989 in	Push-Fit	0.07 in
Essentra Components 22HSC0010B	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.156 in	Black	Clamp Hose	0.235 in	0.26 in	Push-Fit
Essentra Components 22HSC0080B	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.23 in	Black	Clamp Hose	0.5 in	0.545 in	Push-Fit
Essentra Components 22HSC0180B	UL94 V-2	6 Nylon 6 Polyamide (PA66)	0.23 in	Black	Clamp Hose	0.779 in	0.899 in	Push-Fit
