PES.2M.312.XLCT

Active

LEMO

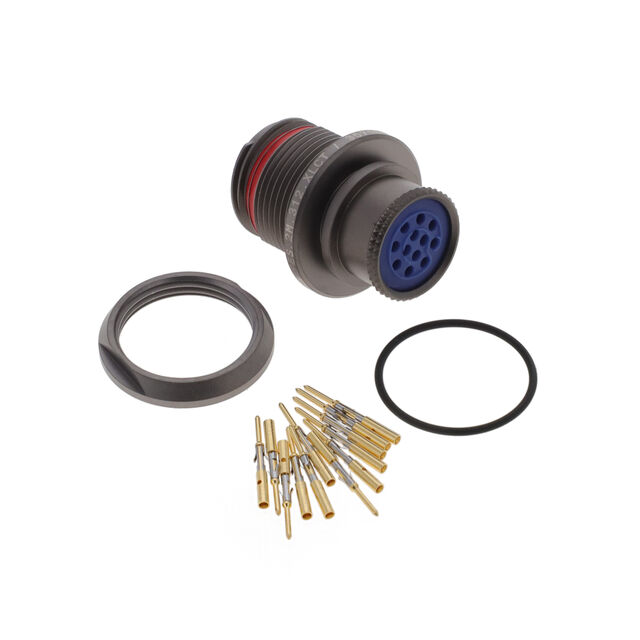

CONN RCPT MALE 12POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 12POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PES.2M.312.XLCT	PES.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.512 in	0.512 in
Cable Opening [custom]	13 mm	13 mm
Color	Gray	Gray, Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	4 - 8 A
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	12	10 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	312	310 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN RCPT MALE 10POS GOLD CRIMP

Part	Orientation	Shell Finish	Primary Material	Color	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Ingress Protection	Shell Size - Insert	Insert Material	Shell Material	Number of Positions	Shielding	Connector Type	Contact Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Applications
LEMO PES.2M.310.XLCT	S	Nickel	Metal	Gray	0.512 in	13 mm	8 A	-55 °C	200 °C	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	310	Polyetheretherketone (PEEK)	Aluminum Alloy	10	Shielded	Male Pins, Receptacle	Brass	Crimp	1 µm	39.4 µin	Gold	Aerospace, Automotive, Aviation, Military
LEMO PES.2M.312.XLCT	S	Nickel	Metal	Gray	0.512 in	13 mm	7 A	-55 °C	200 °C	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	312	Polyetheretherketone (PEEK)	Aluminum Alloy	12	Shielded	Male Pins, Receptacle	Brass	Crimp	1 µm	39.4 µin	Gold	Aerospace, Automotive, Aviation, Military
LEMO PES.2M.319.CLCT	S	Chrome	Metal	Silver	0.512 in	13 mm	4 A	-55 °C	200 °C	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	319	Polyetheretherketone (PEEK)	Brass	19	Shielded	Male Pins, Receptacle	Brass	Crimp	1 µm	39.4 µin	Gold	Aerospace, Automotive, Aviation, Military
