LTM8046IY

Active

Analog Devices

3.1VINTO 31VIN, 2KVAC ISOLATED DC/DC ΜMODULE (POWER MODULE) CONVERTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR598 Reliability Data Datasheet

LTM8046IY

Active

Analog Devices

3.1VINTO 31VIN, 2KVAC ISOLATED DC/DC ΜMODULE (POWER MODULE) CONVERTER

Deep-Dive with AI

DocumentsR598 Reliability Data Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM8046IY

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

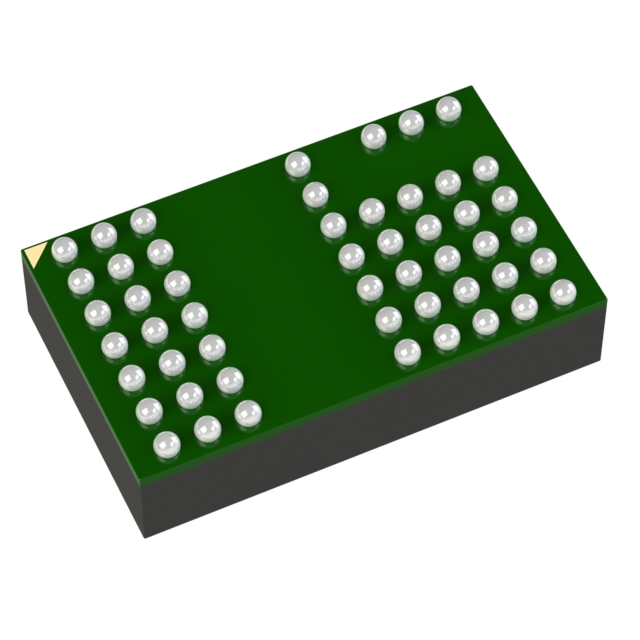

Package / Case	51-BBGA Module
Size / Dimension [x]	15 mm
Size / Dimension [x]	0.59 in
Size / Dimension [y]	11.3 mm
Size / Dimension [y]	0.44 in
Size / Dimension [z]	0.19 in
Size / Dimension [z]	4.9 mm
Supplier Device Package	51-BGA (15x9)
Type	Isolated Module
Voltage - Input (Max) [Max]	31 V
Voltage - Input (Min) [Min]	3.1 V
Voltage - Isolation	3000 V
Voltage - Output 1 [Max]	12 V
Voltage - Output 1 [Min]	1.8 V

LTM8046 Series

3.1VINto 31VIN, 2kVAC Isolated DC/DC μModule (Power Module) Converter

Part	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications
Analog Devices LTM8046IY#PBF	51-BBGA Module	3000 V	3.1 V	51-BGA (15x9)	550 mA	31 V	125 °C	-40 °C	12 V	1.8 V	Surface Mount	1	Isolated Module	15 mm	11.3 mm	0.19 in	0.44 in	4.9 mm	0.59 in	ITE (Commercial)
Analog Devices LTM8046EY#PBF	51-BBGA Module	3000 V	3.1 V	51-BGA (15x9)	550 mA	31 V	125 °C	-40 °C	12 V	1.8 V	Surface Mount	1	Isolated Module	15 mm	11.3 mm	0.19 in	0.44 in	4.9 mm	0.59 in	ITE (Commercial)
Analog Devices LTM8046MPY	51-BBGA Module	3000 V	3.1 V	51-BGA (15x9)	550 mA	31 V	125 °C	-55 °C	12 V	1.8 V	Surface Mount	1	Isolated Module	15 mm	11.3 mm	0.19 in	0.44 in	4.9 mm	0.59 in	ITE (Commercial)
Analog Devices LTM8046IY	51-BBGA Module	3000 V	3.1 V	51-BGA (15x9)	500 mA	31 V	125 °C	-40 °C	12 V	1.8 V	Surface Mount	1	Isolated Module	15 mm	11.3 mm	0.19 in	0.44 in	4.9 mm	0.59 in	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 42.79
		10	$ 32.06
		25	$ 29.42
		170	$ 29.43
Newark	Each	1	$ 38.60
		5	$ 34.19
		10	$ 31.47
		25	$ 30.40
		50	$ 29.44
		100	$ 29.42
		250	$ 29.42

Description

General part information

LTM8046 Series

The LTM8046 is an isolated flyback DC/DC μModule®(power module) converter. The LTM8046 has an isolation rating of 2kVAC. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8046 supports an output voltage range of 1.8V to 12V, set by one resistor. Only output, input, and bias capacitors are needed to finish the design. An optional capacitor can be used to set the soft-start period.The LTM8046 is packaged in a 9mm × 15mm × 4.92mm over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8046 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsIndustrial SensorsIndustrial SwitchesGround Loop Mitigation
