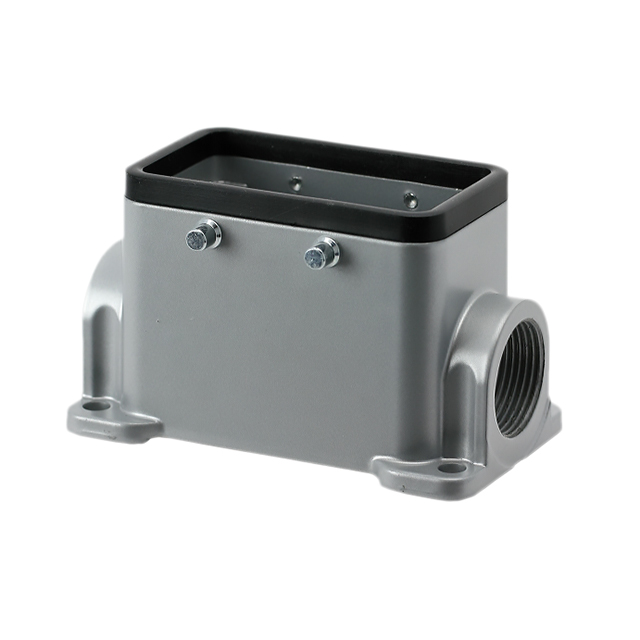

C146 10N024 608 2

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE24 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE24 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10N024 608 2

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	143.5 mm
Size / Dimension [x]	5.65 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	3.15 "
Size / Dimension [z]	80 mm
Style	Side Entry
Thread Size	M32

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Housing Material	Lock Location	Size	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Features
Amphenol Tuchel Industrial C146 10N024 500 2	57 mm	3.15 "	143.5 mm	5.65 in	80 mm	2.244 "	Base - Box Mount	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	E24	IP65 - Dust Tight Water Resistant	M32	100 °C	-40 °C	Side Entry
Amphenol Tuchel Industrial C146 10N024 608 2	57 mm	3.15 "	143.5 mm	5.65 in	80 mm	2.244 "	Base - Box Mount	Aluminum Alloy Die Cast	Locking Clip (2) on Hood	E24	IP65 - Dust Tight Water Resistant	M32	100 °C	-40 °C	Side Entry	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 38.85

General part information

Base - Box Mount Connector Side Entry M32 E24 IP65 - Dust Tight, Water Resistant
