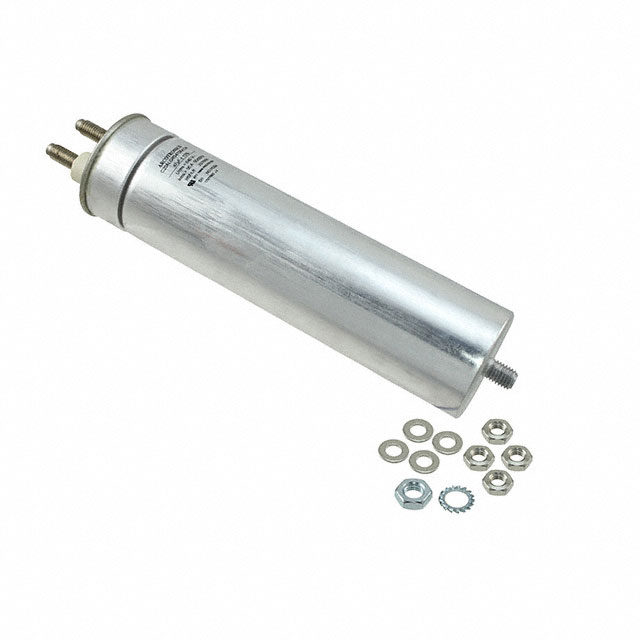

20ALGR5470AASK

Obsolete

KEMET

CAP FILM 47UF 10% 1.4KVDC RADIAL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 47UF 10% 1.4KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	20ALGR5470AASK

Applications	Power Factor Correction (PFC), Commutation, EMI, RFI Suppression
Capacitance	47 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	1.9 mOhms
Features	Long Life
Height - Seated (Max) [Max] [z]	249 mm
Height - Seated (Max) [Max] [z]	9.803 "
Lead Spacing	1.102 in
Lead Spacing	28 mm
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	65 mm
Size / Dimension [diameter]	2.559 in
Termination	Threaded, Male
Tolerance	10 %
Voltage Rating - AC	640 V
Voltage Rating - DC	1400 V
Voltage Rating - DC	1.4 kV

Part	Mounting Type	Package / Case	Dielectric Material	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Capacitance	Lead Spacing	Lead Spacing	Applications	Termination	Tolerance	Features	Operating Temperature [Max]	Operating Temperature [Min]
KEMET 20ALGR5470AASK	Chassis Stud Mount	Radial Can	Metallized Polypropylene (PP)	65 mm	2.559 in	249 mm	9.803 "	1.9 mOhms	1400 V	1.4 kV	640 V	47 µF	1.102 in	28 mm	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Threaded Male	10 %	Long Life	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

47 µF Film Capacitor 640V 1400V (1.4kV) Polypropylene (PP), Metallized Radial, Can
