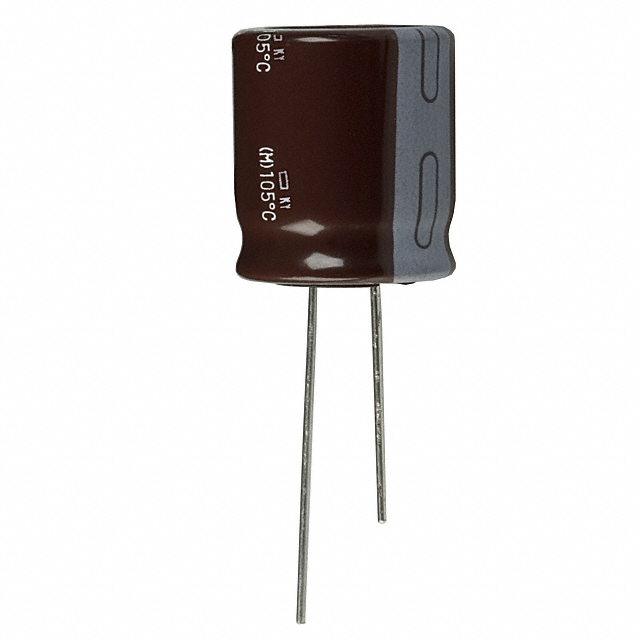

EKY-250ELL222MM20S
ActiveChemi-Con
CAP ALUM 2200UF 20% 25V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EKY-250ELL222MM20S
ActiveChemi-Con
CAP ALUM 2200UF 20% 25V RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EKY-250ELL222MM20S | EKY-250E Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Capacitance | 2200 µF | 1.2 - 4700 µF |
| Height - Seated (Max) | - | 13 - 37 mm |
| Height - Seated (Max) | - | 0.512 - 16.51 in |
| Height - Seated (Max) | - | 41.5 mm |
| Height - Seated (Max) [Max] | 21.5 mm | 1.634 - 31.5 mm |
| Height - Seated (Max) [Max] | 0.846 in | 0.492 - 1.24 in |
| Impedance | 26 mOhms | 12 - 580 mOhms |
| Lead Spacing | 7.5 mm | 2 - 7.5 mm |
| Lead Spacing | 0.295 in | 0.079 - 0.295 in |
| Lifetime @ Temp. | 10000 Hrs | 5000 - 10000 Hrs |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Radial, Can | Radial, Can |
| Polarization | Polar | Polar |
| Ripple Current @ High Frequency | 2.86 A | 1.05 - 840 mA |
| Ripple Current @ Low Frequency | 2.145 A | 1.14 - 870 mA |
| Size / Dimension [diameter] | 0.709 " | 0.197 - 0.709 " |
| Size / Dimension [diameter] | 18 mm | 5 - 18 mm |
| Tolerance | 20 % | 20 % |
| Voltage - Rated | 25 VDC | 25 VDC |
EKY-250E Series
CAP ALUM 47UF 20% 25V RADIAL TH
| Part | Lead Spacing | Lead Spacing | Ripple Current @ High Frequency | Ripple Current @ Low Frequency | Impedance | Polarization | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Applications | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Lifetime @ Temp. | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chemi-Con EKY-250ELL470ME11D | 2 mm | 0.079 in | 210 mA | 84 mA | 580 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 47 µF | 0.492 in | 12.5 mm | 20 % | 5000 Hrs | Through Hole | 5 mm | 0.197 " | |||
Chemi-Con EKY-250ETD471MH20D | 3.5 mm | 0.138 in | 1.05 A | 525 mA | 69 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 470 µF | 0.846 in | 21.5 mm | 20 % | 7000 Hrs | Through Hole | 8 mm | 0.315 " | |||
Chemi-Con EKY-250ETD681MJ20S | 5 mm | 0.197 in | 1.4 A | 840 mA | 46 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 680 µF | 0.846 in | 21.5 mm | 20 % | 7000 Hrs | Through Hole | 10 mm | 0.394 in | |||
Chemi-Con EKY-250ELL472MMP1S | 7.5 mm | 0.295 in | 4.22 A | 3.587 A | 14 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 4700 µF | 20 % | 10000 Hrs | Through Hole | 18 mm | 0.709 " | 37 mm | 1.457 in | |||
Chemi-Con EKY-250ETC471MH20D | 3.5 mm | 0.138 in | 1.05 A | 525 mA | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 470 µF | 0.846 in | 21.5 mm | 20 % | 7000 Hrs | Through Hole | 8 mm | 0.315 " | ||||
Chemi-Con EKY-250ELL331MH15D | 3.5 mm | 0.138 in | 840 mA | 420 mA | 87 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 330 µF | 20 % | 7000 Hrs | Through Hole | 8 mm | 0.315 " | 16.5 mm | 16.51 mm | |||
Chemi-Con EKY-250ELL182MK30S | 5 mm | 0.197 in | 2.65 A | 1.59 A | 24 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 1800 µF | 1.24 in | 31.5 mm | 20 % | 10000 Hrs | Through Hole | 12.5 mm | 0.492 in | |||
Chemi-Con EKY-250ELL221MHB5D | 3.5 mm | 0.138 in | 640 mA | 320 mA | 130 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 220 µF | 20 % | 7000 Hrs | Through Hole | 8 mm | 0.315 " | 13 mm | 0.512 " | |||
Chemi-Con EKY-250ELL122MM15S | 7.5 mm | 0.295 in | 2.21 A | 1.326 A | 43 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 1.2 mF | 20 % | 10000 Hrs | Through Hole | 18 mm | 0.709 " | 16.5 mm | 16.51 mm | |||
Chemi-Con EKY-250ELL101MF11D | 2.5 mm | 0.098 in | 340 mA | 136 mA | 220 mOhms | Polar | 25 VDC | -40 °C | 105 ░C | Radial, Can | General Purpose | 100 µF | 0.492 in | 12.5 mm | 20 % | 5000 Hrs | Through Hole | 6.3 mm | 0.248 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.74 | |
| 10 | $ 1.33 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.72 | |||
| 2500 | $ 0.69 | |||
| 5000 | $ 0.66 | |||
Description
General part information
EKY-250E Series
2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
