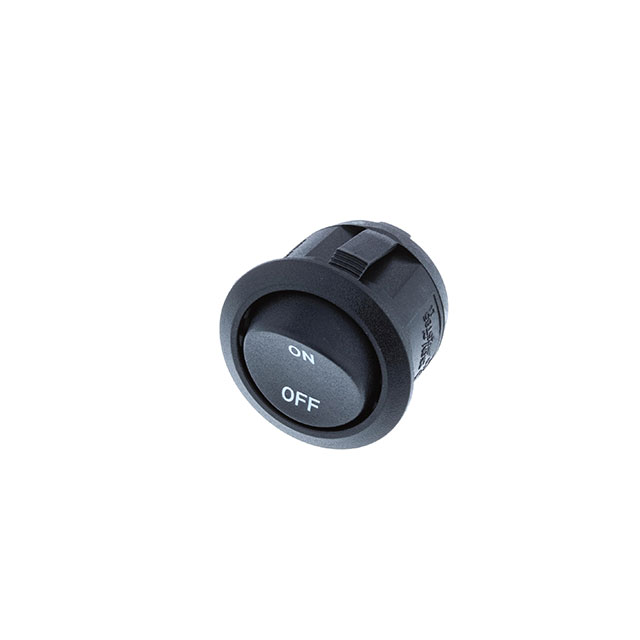

RA1-2A-AC-2-B-2

Active

Switch Components

VAC ROUND, DPST OFF-ON, PRINT

Search across all available documentation for this part.

Active

Switch Components

VAC ROUND, DPST OFF-ON, PRINT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RA1-2A-AC-2-B-2	RA1-2A Series

Actuator Marking	Vertical, ON OFF	Vertical, ON OFF, No Marking, O -
Actuator Type	Round	Round
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	DPST	DPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	10 A	10 - 16 A
Electrical Life	-	6000 Cycles
Ingress Protection	IP40	IP40
Mechanical Life	-	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-25 - -20 C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	-	28 V

VAC ROUND, DPST OFF-ON, PRINT

Part	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Color - Actuator/Cap	Actuator Marking	Approval Agency	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Electrical Life	Mechanical Life
Switch Components RA1-2A-AC-2-B-2	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-20 C	10 A	DPST	Round	20.2 mm	IP40	Black	ON OFF, Vertical	cURus, ENEC	On-Off
Switch Components RA1-2A-DC-2-B-2	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-25 °C	10 A, 16 A	DPST	Round	20.2 mm		Black	ON OFF, Vertical	cURus, ENEC	On-Off	28 V	125 V	6000 Cycles	10000 Steps
Switch Components RA1-2A-DC-2-B	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-25 °C	10 A, 16 A	DPST	Round	20.2 mm		Black	No Marking	cURus, ENEC	On-Off	28 V	125 V	6000 Cycles	10000 Steps
Switch Components RA1-2A-DC-2-B-1	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-25 °C	10 A, 16 A	DPST	Round	20.2 mm		Black	O -	cURus, ENEC	On-Off	28 V	125 V	6000 Cycles	10000 Steps
