ST72T141K2M6

Obsolete

STMicroelectronics

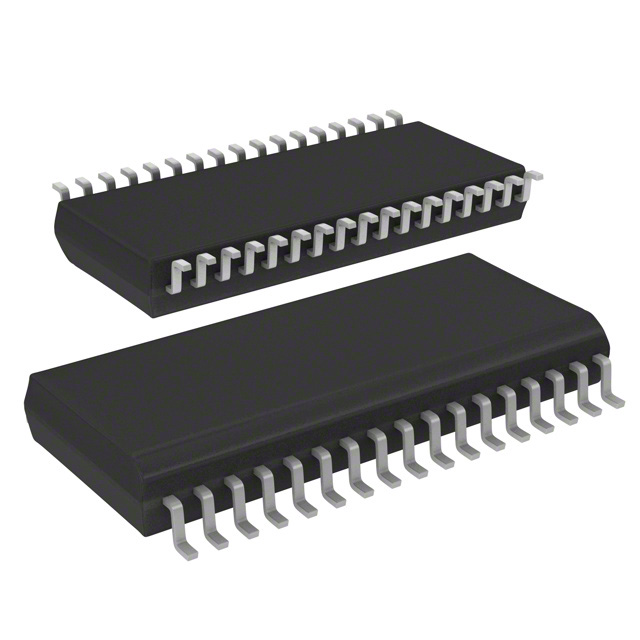

IC MCU 8BIT 8KB OTP 34SOIC

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC MCU 8BIT 8KB OTP 34SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	ST72T141K2M6

Connectivity	SPI
Core Processor	ST7
Core Size	8-Bit
Data Converters	A/D 8x8b
Mounting Type	Surface Mount
Number of I/O	14
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	34-BSOP
Package / Case [x]	7.5 mm
Package / Case [x]	0.295 in
Peripherals	POR, LVD, Motor Control PWM, PWM, WDT
Program Memory Type	OTP
RAM Size	256 x 8
Speed	8 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	4 V

Part	Core Size	Mounting Type	Connectivity	Speed	Data Converters	Oscillator Type	Package / Case [x]	Package / Case [x]	Package / Case	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Core Processor	RAM Size	Program Memory Type	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]
STMicroelectronics ST72T141K2M6	8-Bit	Surface Mount	SPI	8 MHz	A/D 8x8b	Internal	7.5 mm	0.295 in	34-BSOP	5.5 V	4 V	LVD Motor Control PWM POR PWM WDT	ST7	256 x 8	OTP	14	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ST7 ST7 Microcontroller IC 8-Bit 8MHz 8KB (8K x 8) OTP
