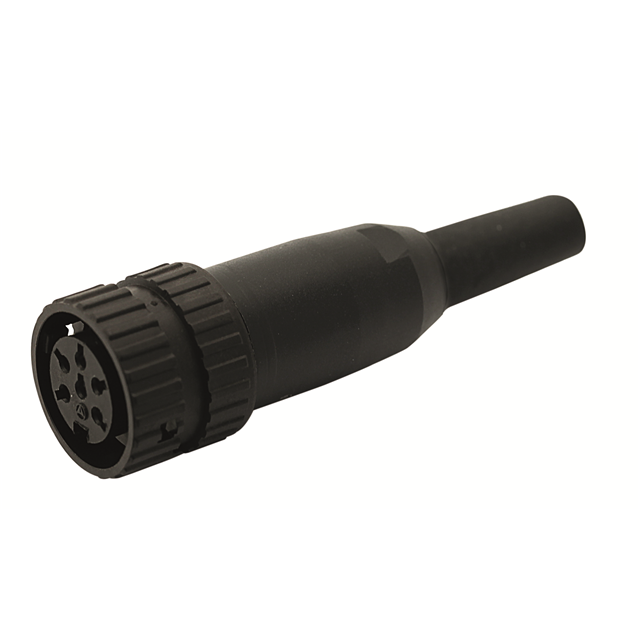

T 3325 951

Active

Amphenol Sine Systems Corp

FULL PLASTIC FEMALE CABLE CONNEC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FULL PLASTIC FEMALE CABLE CONNEC

Technical Specifications

Parameters and characteristics for this part

Specification	T 3325 951

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell, Cable Clamp, Strain Relief
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	M16-4
Shielding	Unshielded
Type	For Female Sockets

Part	Housing Color	Features	Fastening Type	Insert Material	Mounting Type	Number of Positions	Type	Shell Material	Ingress Protection	Connector Type	Contact Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Shell Finish	Note	Shielding	Shell Size - Insert	Material Flammability Rating	Contact Shape
Amphenol Sine Systems Corp T 3325 055	Black Silver	Backshell Cable Clamp Coupling Nut Strain Relief	Bayonet Lock	Thermoplastic	Free Hanging (In-Line) Right Angle	4	For Female Sockets	Die Cast	IP40	Plug Housing	Crimp	Keyed	100 °C	-40 °C	1.5 mm	Nickel	Contacts Not Included	Unshielded	M16-4	UL94 V-0	Circular
Amphenol Sine Systems Corp T 3325 951	Black	Backshell Cable Clamp Coupling Nut Strain Relief	Bayonet Lock	Thermoplastic	Free Hanging (In-Line)	4	For Female Sockets		IP40	Plug Housing	Crimp	Keyed	100 °C	-40 °C	1.5 mm		Contacts Not Included	Unshielded	M16-4	UL94 V-0	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut, Strain Relief
