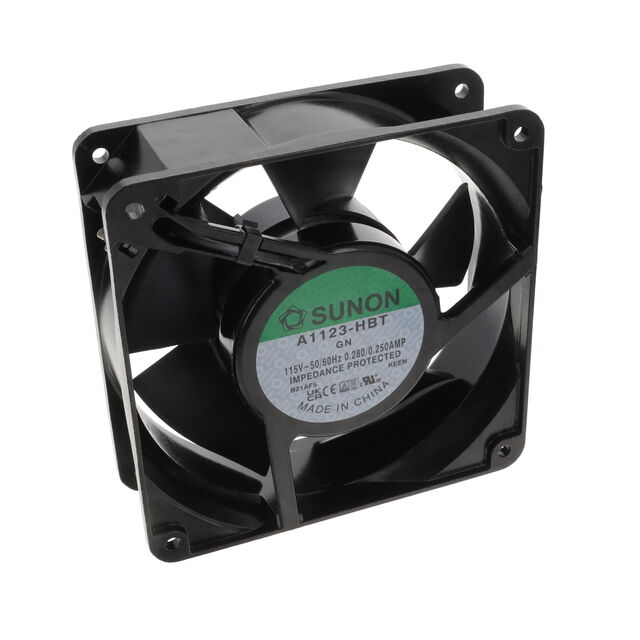

A1123-HBT.GN

Active

Sunon Fans

FAN AXIAL 119.5X38.5MM 115VAC

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 119.5X38.5MM 115VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 119.5mm L x 119.5mm H Ball 117.0 CFM (3.28m³/min) 2 Terminals

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A1123-HBT.GN	A1123 Series

Air Flow	3.28 m³/min	3.22 - 3.28 m³/min
Air Flow	117 CFM	115 - 117 CFM
Approval Agency	TUV, cUR, UL, CE	TUV, cUR, UL, CE
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	0.25 A	0.21 - 0.25 A
Fan Type	Tubeaxial	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	50 dB(A)	49 - 50 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	20 W	20 W
RPM	3100 RPM	3100 RPM
Size / Dimension [x]	119.5 mm	119.5 mm
Size / Dimension [z]	119.5 mm	119.5 mm
Static Pressure	0.39 in H2O	0.38 - 0.39 in H2O
Static Pressure	97.1 Pa	94.6 - 97.1 Pa
Termination	2 Terminals	2 Terminals, 2 Wire Leads
Voltage - Rated	115 VAC	115 VAC
Voltage Range [Max]	125 VAC	125 VAC
Voltage Range [Min]	75 VAC	75 VAC
Width [y]	38.5 mm	38.5 mm

FAN AXIAL 119.5X38.5MM 115VAC

Part	Noise	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Termination	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Width [y]	Material - Blade	Current Rating (Amps)	Bearing Type	RPM	Air Flow	Air Flow	Power (Watts)	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]
Sunon Fans A1123-HBT.GN	50 dB(A)	115 VAC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Terminals	Aluminum	119.5 mm	119.5 mm	CE, cUR, TUV, UL	38.5 mm	Polybutylene Terephthalate (PBT)	0.25 A	Ball	3100 RPM	3.28 m³/min	117 CFM	20 W	0.39 in H2O	97.1 Pa	75 VAC	125 VAC
Sunon Fans A1123-HSL.GN	49 dB	115 VAC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Wire Leads	Aluminum	119.5 mm	119.5 mm	CE, cUR, TUV, UL	38.5 mm	Polybutylene Terephthalate (PBT)	0.21 A	Sleeve	3100 RPM	3.22 mł/min	115 CFM	20 W	0.38 in H2O	94.6 Pa	75 VAC	125 VAC
