31-131.022

Active

EAO

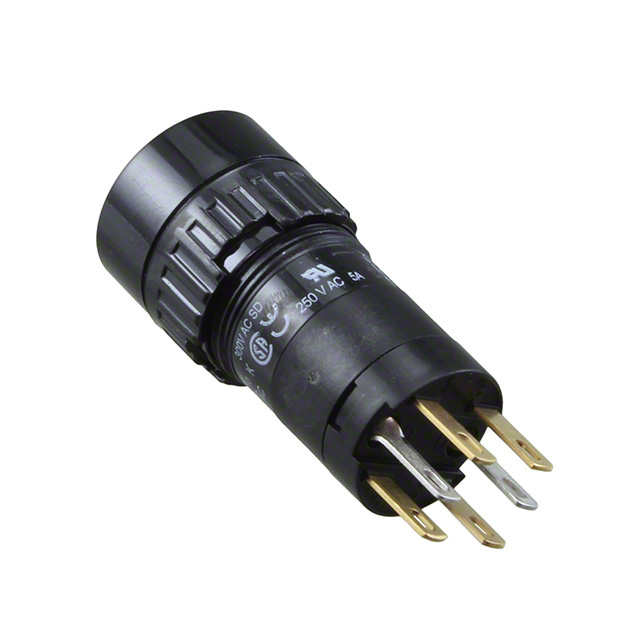

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND

Search across all available documentation for this part.

Active

EAO

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front

Technical documentation and resources

Specification	31-131.022	31-131 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button (Not Included)	Round, Button (Not Included)
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP40	IP40
Mechanical Life	2000000 Cycles	2000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

Part	Ingress Protection	Actuator Type	Termination Style	Termination Style	Termination Style	Mounting Type	Type	Circuit	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Actuator Marking	Current Rating (Amps)
EAO 31-131.022	IP40	Round, Button (Not Included)	0.11 in	Quick Connect, Solder	2.8 mm	Panel Mount, Front	Standard	DPST-NO/NC	250 V	16 mm	55 °C	-25 °C	2000000 Cycles	Off-Mom, On-Mom	No Marking	5 A
