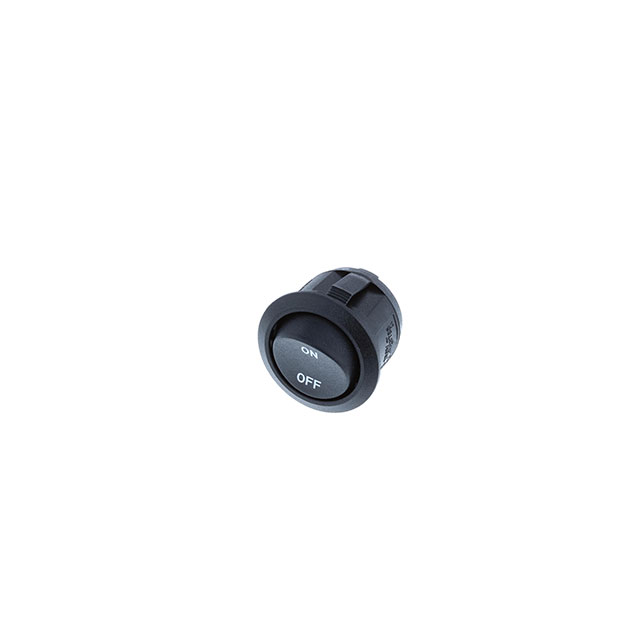

RA1-1A-DC-2-B-2

Active

Switch Components

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RA1-1A-DC-2-B-2

Active

Switch Components

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RA1-1A-DC-2-B-2	RA1-1A Series

Actuator Marking	Vertical, ON OFF	Vertical, ON OFF, No Marking, Dot, O -
Actuator Type	Round	Round, Round - Illuminated
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black, Green, Amber, Red, White
Current Rating (Amps)	20 A, 16 A	10 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	-	LED, Green, Amber
Illumination Voltage (Nominal)	-	14 VDC
Ingress Protection	-	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	14 V	14 V

RA1-1A Series

SWITCH ROCKER SPST 10A 125V

Part	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Circuit	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Switch Function	Color - Actuator/Cap	Actuator Marking	Approval Agency	Mechanical Life	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Illumination Voltage (Nominal)	Ingress Protection
Switch Components RA1-1A-DC-2-B-2	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black	ON OFF, Vertical	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-DC-2-GL	20 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round - Illuminated	-25 °C	85 °C	6000 Cycles	On-Off	Green	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm	Green, LED	14 VDC
Switch Components RA1-1A-AC-2-B-2	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	Black	ON OFF, Vertical	cURus, ENEC			20.2 mm			IP40
Switch Components RA1-1A-DC-2-AL	20 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round - Illuminated	-25 °C	85 °C	6000 Cycles	On-Off	Amber	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm	Amber, LED	14 VDC
Switch Components RA1-1A-DC-2-B-3	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black	Dot	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-DC-2-R	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black, Red	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-DC-2-B	16 A, 20 A	Panel Mount, Snap-In	125 V	SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C	6000 Cycles	On-Off	Black	No Marking	cURus, ENEC	10000 Steps	14 V	20.2 mm
Switch Components RA1-1A-AC-2-H	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	White	No Marking	cURus, ENEC			20.2 mm			IP40
Switch Components RA1-1A-AC-2-B	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	Black	No Marking	cURus, ENEC			20.2 mm			IP40
Switch Components RA1-1A-AC-2-B-1	10 A	Panel Mount, Snap-In		SPST	Quick Connect - 0.187" (4.7mm)	Round	-25 °C	85 °C		On-Off	Black	O -	cURus, ENEC			20.2 mm			IP40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RA1-1A Series

Rocker Switch SPST 16 (AC), 20 (DC) 125 V Panel Mount, Snap-In
