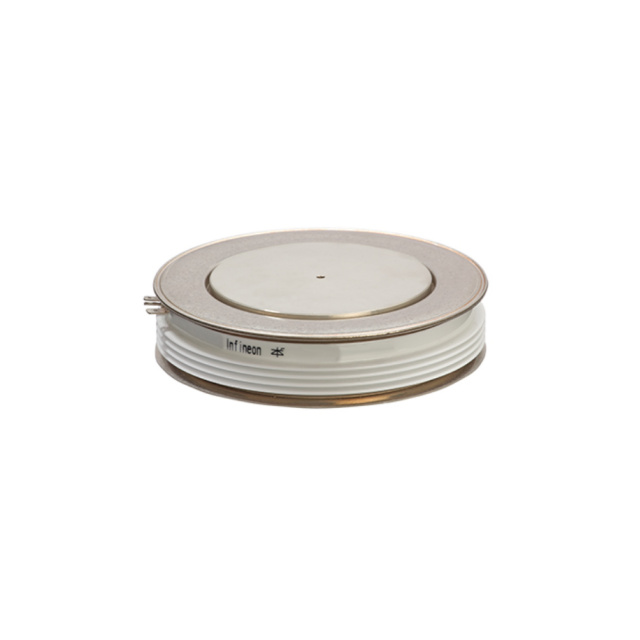

T2851N48TOHXPSA1

Obsolete

Infineon Technologies

SCR MODULE 5200V 4860A DO200AE

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SCR MODULE 5200V 4860A DO200AE

Technical Specifications

Parameters and characteristics for this part

Specification	T2851N48TOHXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	350 mA
Current - Hold (Ih) (Max) [Max]	350 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	82000 A
Current - On State (It (AV)) (Max) [Max]	4120 A
Current - On State (It (RMS)) (Max)	4860 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-200AF
Structure	Single
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	5.2 kV

Part	Mounting Type	Structure	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max)	Voltage - Off State
Infineon Technologies T2851N48TOHXPSA1	Chassis Mount	Single	TO-200AF	82000 A	1 SCR	125 °C	-40 °C	350 mA	4120 A	350 mA	4860 A	2.5 V	5.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 5.2 kV 4860 A Single Chassis Mount TO-200AF

Technical documentation and resources

No documents available
