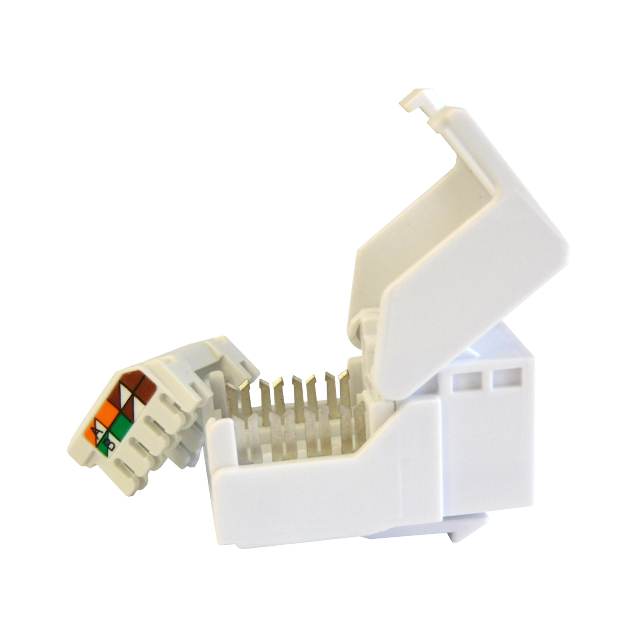

SS-82000-005

Active

Bel

MOD JACK KEYSTONE CAT5E UNSHLD

Search across all available documentation for this part.

Active

Bel

MOD JACK KEYSTONE CAT5E UNSHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SS-82000-005	SS-82000 Series

Exterior Contact Finish	Gold	Gold
Exterior Contact Finish Thickness	1.27 Ám	1.27 Ám
Exterior Contact Finish Thickness	50 Áin	50 Áin
Exterior Contact Material	Phosphor Bronze	Phosphor Bronze
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Latch Lock	Panel Lock, Panel Stops, Latch Lock
Interior Contact Finish	Tin	Tin
Interior Contact Finish Thickness	2.54 µm	2.54 µm
Interior Contact Finish Thickness	100 µin	100 µin
Interior Contact Material	Phosphor Bronze	Phosphor Bronze
Interior Type (Adapter End)	Pressdown, IDC, Punchdown Block	Modular Jack 8p8c (RJ45, Ethernet), Pressdown, IDC, Punchdown Block
Ratings	Cat5e	Cat5e
Style	Modular	Modular

MOD KEYSTONE CPLR CAT5E UNSHLD

Part	Features	Exterior Contact Material	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Exterior Contact Finish	Style	Interior Type (Adapter End)	Ratings	Exterior Type (Adapter End)	Interior Contact Material	Interior Contact Finish	Interior Contact Finish Thickness	Interior Contact Finish Thickness
Bel SS-82000-004	Panel Lock, Panel Stops	Phosphor Bronze	1.27 Ám	50 Áin	Gold	Modular	Modular Jack 8p8c (RJ45, Ethernet)	Cat5e	Modular Jack 8p8c (RJ45, Ethernet)	Phosphor Bronze
Bel SS-82000-005	Latch Lock	Phosphor Bronze	1.27 Ám	50 Áin	Gold	Modular	IDC, Pressdown, Punchdown Block	Cat5e	Modular Jack 8p8c (RJ45, Ethernet)	Phosphor Bronze	Tin	2.54 µm	100 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block

Technical documentation and resources

No documents available
