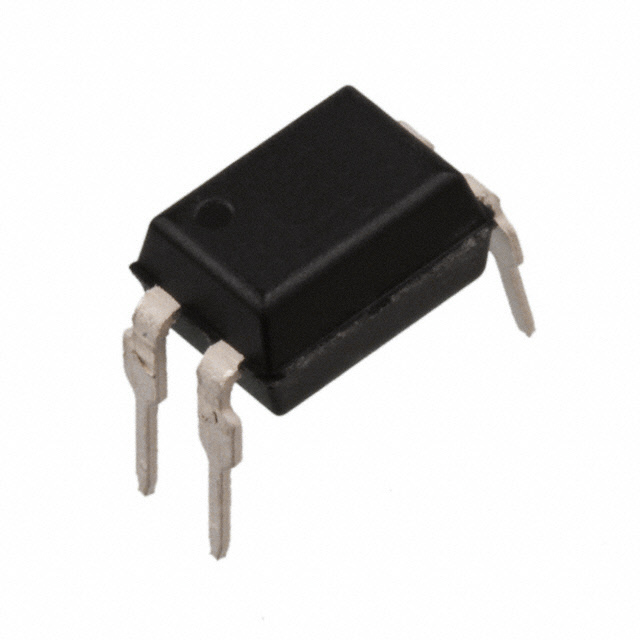

PS2505-1X

Active

Isocom Components 2004 LTD

OPTOISO 5.3KV TRANS 4DIP

Search across all available documentation for this part.

Active

Isocom Components 2004 LTD

OPTOISO 5.3KV TRANS 4DIP

Technical Specifications

Parameters and characteristics for this part

Specification	PS2505-1X

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	600 %
Current Transfer Ratio (Min) [Min]	80 %
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm
Package / Case	4-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-DIP
Vce Saturation (Max) [Max]	300 mV
Voltage - Isolation	5300 Vrms

OPTOISO 5.3KV TRANS 4DIP

Part	Supplier Device Package	Current Transfer Ratio (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Channels	Vce Saturation (Max) [Max]	Output Type	Current - Output / Channel	Package / Case	Current Transfer Ratio (Min) [Min]	Current - DC Forward (If) (Max)
Isocom Components 2004 LTD PS2505-1X	4-DIP	600 %	3 µs	4 µs	5300 Vrms	100 °C	-30 ░C	Through Hole	1	300 mV	1.81 mOhm	50 mA	4-DIP (0.300", 7.62mm)	80 %	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5300Vrms 1 Channel 4-DIP
