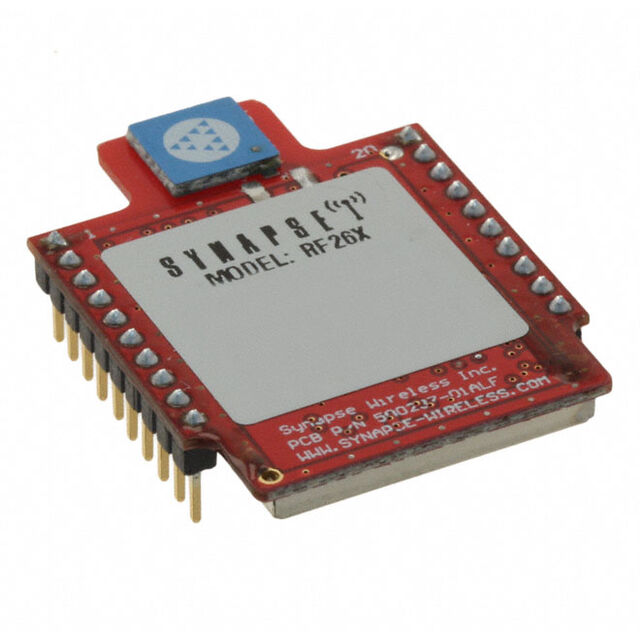

RF266PC1

Obsolete

Synapse Wireless

RF TXRX MOD 802.15.4 CHIP TH

Search across all available documentation for this part.

Obsolete

Synapse Wireless

RF TXRX MOD 802.15.4 CHIP TH

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD 802.15.4 CHIP TH

Part	Current - Receiving	Sensitivity	Data Rate	Memory Size	Power - Output	Mounting Type	Package / Case	Antenna Type	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	RF Family/Standard	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]
Synapse Wireless RF266PC1	25 mA	-103 dBm	2 Mbps	4 kB, 58 kB, 128 kB	20 dBm	Through Hole	20-DIP Module	Integrated, Chip	130 mA	85 °C	-40 °C	2.4 GHz	802.15.4	I2C, SPI	2.7 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

802.15.4 Transceiver Module 2.4GHz Integrated, Chip Through Hole

Technical documentation and resources

No documents available
