1436B

Active

Hammond Manufacturing

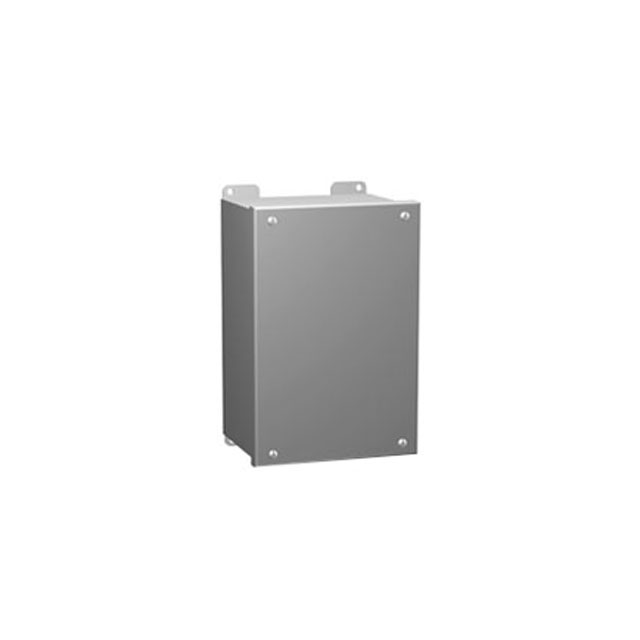

BOX STEEL GRAY 5.75"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

1436B

Active

Hammond Manufacturing

BOX STEEL GRAY 5.75"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1436B	1436 Series

Area (L x W)	18.7 in²	11.5 - 151 in²
Area (L x W)	121 cm²	74 - 974 cm²
Color	Gray	Gray
Container Type	Box	Box
Design	Cover Included	Hinged Door, Lid, Cover Included
Height [z]	69.85 mm	69.85 - 76.2 mm
Height [z]	2.75 in	2.75 - 3 in
Material	Metal, Steel	Metal, Steel
Ratings	IP54, UL-508, NEMA 13, NEMA 12	IP54, UL-508, NEMA 13, NEMA 12
Size / Dimension	-	82.55 - 273.05 mm
Size / Dimension [x]	146.05 mm	88.9 - 355.6 mm
Size / Dimension [x]	5.75 in	3.5 - 14 "
Size / Dimension [y]	82.55 mm	82.55 mm
Size / Dimension [y]	3.25 "	3.25 - 10.75 "
Thickness	14 Gauge	14 Gauge
Weight	907.2 g	1.4 - 907.2 kg
Weight	2 lbs	2 - 11 lbs

1436 Series

BOX STEEL GRAY 9.5"L X 6.25"W

Part	Area (L x W)	Area (L x W)	Material	Color	Ratings	Height [z]	Height [z]	Thickness	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Container Type	Size / Dimension [y]
Hammond Manufacturing 1436H	59.4 in²	383 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	76.2 mm	3 in	14 Gauge	2.3 kg	5 lbs	6.25 "	9.5 "	158.75 mm	241.3 mm	Hinged Door, Lid	Box
Hammond Manufacturing 1436F	45.3 in²	292 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	76.2 mm	3 in	14 Gauge	2.3 kg	5 lbs	6.25 "	7.25 in	158.75 mm	184.15 mm	Hinged Door, Lid	Box
Hammond Manufacturing 1436S	126 in²	813 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	76.2 mm	3 in	14 Gauge	4.1 kg	9 lbs	10.75 in	11.75 in	273.05 mm	298.45 mm	Hinged Door, Lid	Box
Hammond Manufacturing 1436B	18.7 in²	121 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	69.85 mm	2.75 in	14 Gauge	907.2 g	2 lbs	3.25 "	5.75 in		146.05 mm	Cover Included	Box	82.55 mm
Hammond Manufacturing 1436V	151 in²	974 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	76.2 mm	3 in	14 Gauge	5 kg	11 lbs	10.75 in	14 in	273.05 mm	355.6 mm	Hinged Door, Lid	Box
Hammond Manufacturing 1436K	80.8 in²	521 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	76.2 mm	3 in	14 Gauge	3.2 kg	7 lbs	8.5 "	9.5 "	215.9 mm	241.3 mm	Hinged Door, Lid	Box
Hammond Manufacturing 1436O			Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	76.2 mm	3 in	14 Gauge	3.6 kg	8 lbs					Hinged Door, Lid	Box
Hammond Manufacturing 1436A	11.5 in²	74 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	69.85 mm	2.75 in	14 Gauge	907.2 g	2 lbs	3.25 "	3.5 in	82.55 mm	88.9 mm	Cover Included	Box
Hammond Manufacturing 1436C	26 in²	168 cm²	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	69.85 mm	2.75 in	14 Gauge	1.4 kg	3.1 lbs	3.25 "	8 "	82.55 mm	203.2 mm	Cover Included	Box
Hammond Manufacturing 1436D	33.3 in²	215 cm˛	Metal, Steel	Gray	IP54, NEMA 12, NEMA 13, UL-508	69.85 mm	2.75 in	14 Gauge	1.8 kg	4 lbs	3.25 "	10.25 "	82.55 mm	260.35 mm	Cover Included	Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 72.57
		5	$ 68.04
		10	$ 63.50
		25	$ 62.37
		50	$ 61.23
		100	$ 60.33

Description

General part information

1436 Series

Box Metal, Steel Gray Cover Included 5.750" L x 3.250" W (146.05mm x 82.55mm) X 2.750" (69.85mm)

Documents

Technical documentation and resources

No documents available
